3M 8425-8 Cold Shrink Connector Insulator

Manufacturer: 3M | Catalog # 7000031605 | Echo Electric Part # 180265
$4,337.39/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
2 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
14 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Catalog Page
Quick and easy installation, no special tools and no heat requiredSeals tight, retains resiliency and pressureAccommodates a wide range of cable sizesResists acids, alkalis and ozoneNo mastic or tape required to seal

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Cable Type
Power Cable
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Operating Temperature
-40 degrees C
Size
1 AWG; 1/0 AWG; 2 AWG
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007423911
Color
Black
GTiN
00054007423911
Product Type
Cold Shrink
Product UPC
05400742391

Dimensions

Diameter
23.9 mm
Overall Length
8.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • DESIGNED FOR PRIMARY INSULATION: For use with solid dielectric insulated wires and cable splicing rated to 1000 volts
  • QUICK, EASY INSTALLATION: Simple installation which requires no tools

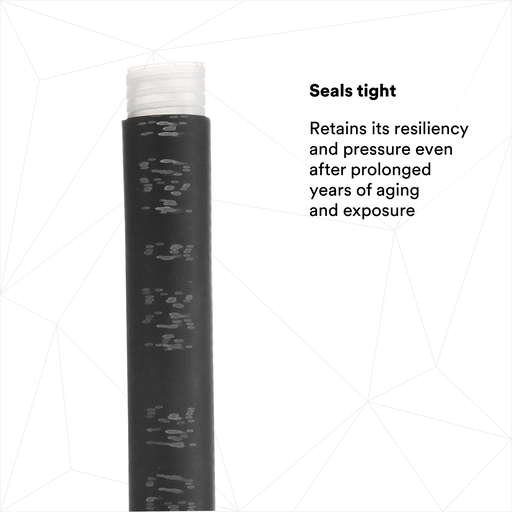

  • SEALS TIGHT: Retains its resiliency and pressure even after prolonged years of aging and exposure

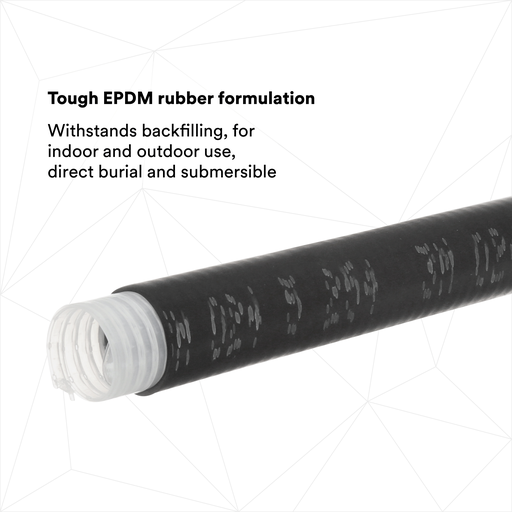

  • TOUGH EPDM RUBBER FORMULATION: Withstands backfilling, for indoor and outdoor use, direct burial and submersible

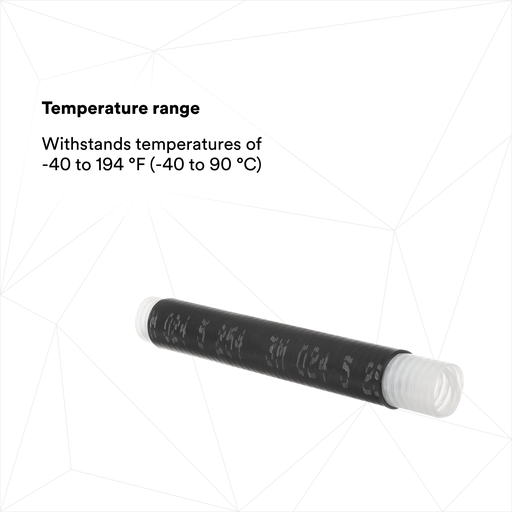

  • TEMPERATURE RANGE: Withstands temperatures of -40 to 194 °F (-40 to 90 °C)

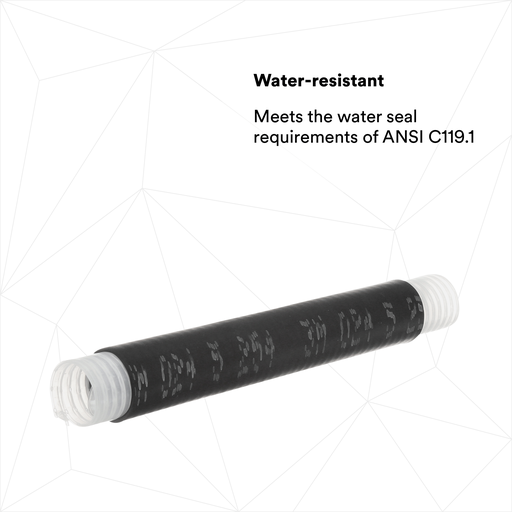

  • WATER-RESISTANT: Meets the water seal requirements of ANSI C119.1
