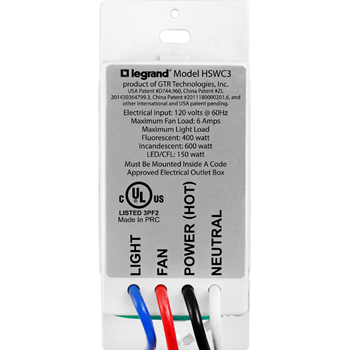

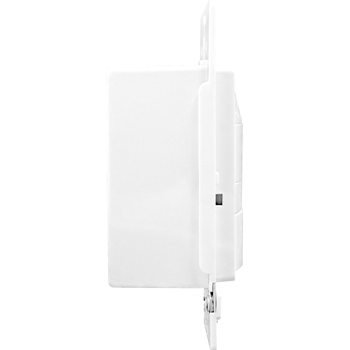

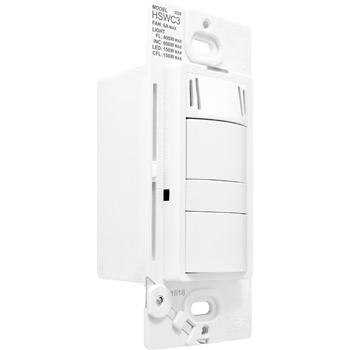

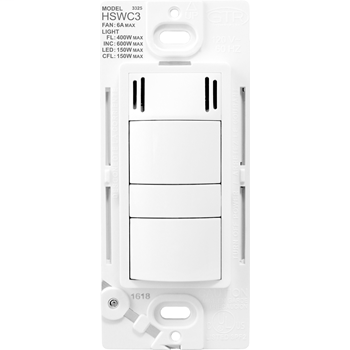

Pass & Seymour HSWC3W 6A/600W Dimmer and Fan Control Humidity Sensor - White

Manufacturer: Pass & Seymour / Legrand | Catalog # HSWC3W | Echo Electric Part # 180353
$104.76/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Humidity Based Fan Control, HSW, adds intelligent moisture detection to any fan or ventilation system. HSW senses condensation levels in the air, turns on the fan or ventilation system, and runs it until the room is back to a safe moisture level. HSW has adjustable timer settings for manual time use and adjustable condensation for sensitivity. The capability to adjust the sensitivity level on HSW enables the end user to truly tailor their fan or ventilation system to any environment regardless of room size, climate or season.

Technical Information

Action
SP
Amperage
6 Amp
Applications
Residential
Coil Voltage
120.0 V
Connection Type
Back and Side Wired
Contact Rating
6Amps
Indoor Outdoor
Indoor
Load Rating
120V 150W (CFL), 120V 600W (Halogen), 120V 150W (LED), 120V 400W (EFL), 120V 6A (FAN MOTOR), 120V 600W (Incandescent)
Load Type
AC Fan Motor, CFL, LED, Incandescent, Halogen
Mounting Type
Surface
Number of Poles
1 Pole
Number of Switches
2.0
Operating Temperature
Between 0degrees C and 40degrees C
Power Rating
400 W Fluorescent, 600 W Incandescent, 150 W LED/CFL
Size
1.26" Depth x 1.77" Width x 3.281" Height
Standard
CSA C22.2 No. 85,UL E23018,cULus
Switch Type
push
TC Connection
Back and side wire
Temperature Rating
0 degrees C to 40 degrees C
Type
Toggle Switch
Voltage
120 VAC
Wattage
400 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007057416
Finish
Matte
GTiN
00785007057416
Product UPC
78500705741
Features
  • Turns ON the fan when condensation is present and OFF when dry.
  • Adjusts sensors to solve moisture problems.
  • Helps fight mold.
  • Ultra moisture-sensing adaptive technology (patented).
  • Manual timer settings from 5-60 minutes.
  • Great for tenant and family use.
  • Manual fan control for immediate ventilation.
  • Manual bathroom lighting control (HSWC only).
  • Lets you know the fan is ON.
  • Tamper-proof settings cover.
Eco-Benefit Information
  • RoHS Compliant
