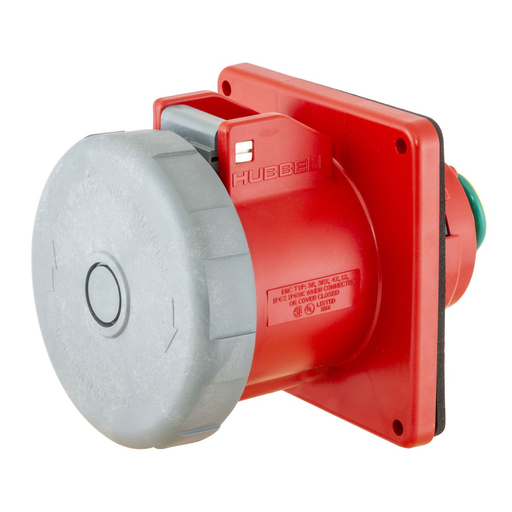

Product image for Hubbell HBL432R3W 32 Amp 380 to 480 Volt 3-Pole 4-Wire Watertight IEC Pin and Sleeve Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL432R3W 32 Amp 380 to 480 Volt 3-Pole 4-Wire Watertight IEC Pin and Sleeve Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL432R3W | Echo Electric Part # 180651
$327.80/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 32A 380/415V, 3-Pole 4- Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
32 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
12-8 AWG
Current
32 Amp
Dielectric Strength
3000 VAC
Grade
Industrial
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
TC Connection
Pressure Plate
Temperature Rating
-40 to 75 degrees C
Type
High Ampacity, Watertight, Standard
Voltage
380 Volt
Wattage
14080 Watt
Wire Count
4
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585404714
Color
Red
Environmental Conditions
Watertight
GTiN
00783585404714
Product UPC
78358540471
Weight
1.3 lb

Dimensions

Height
4.06 Inch
Length
4.43 Inch
Width
4.800 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Features
  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
  • Color coded housings for easy identification
  • Watertight
