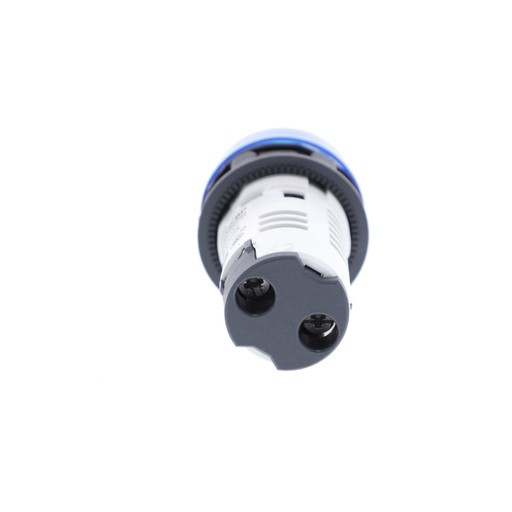

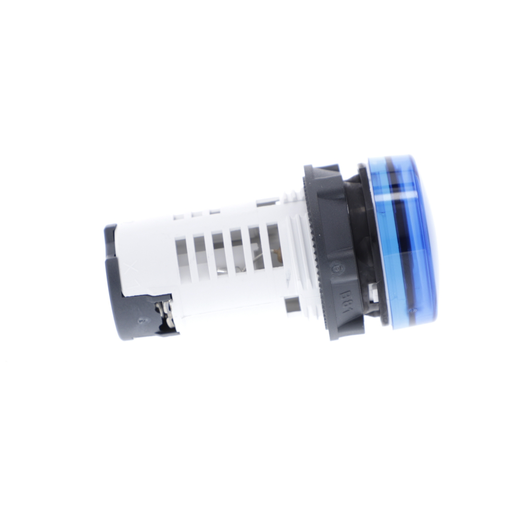

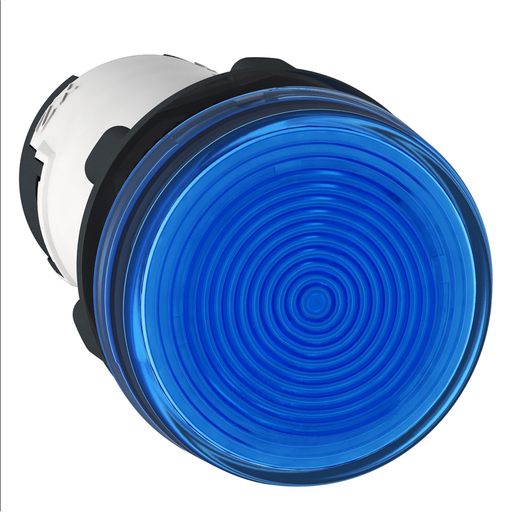

Product image for Square D XB7EV06BP MONOLITHIC PILOT LIGHT - LED - BLUE - 24,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XB7EV06BP MONOLITHIC PILOT LIGHT - LED - BLUE - 24,

Manufacturer: Square-D / Schneider | Catalog # XB7EV06BP | Echo Electric Part # 180655
$48.93/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XB7, plain lens monolithic blue pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Technical Information

Current
20-27 mA
Enclosure
NEMA 4 UL 50 E-NEMA 12 UL 50 E
Indicator
LED,BLUE,INTEGRAL LED
Light Source
LED
Mounting Type
Fixing Hole 22.5 Mm 22.3 +0.4/0 EN/IEC 60947-5-1
Net Weight
0.02 kg
Operating Temperature
-25-70 Adegrees C
Size
2.13 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Pilot light
Voltage
24 Volt AC/DC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB7

General Product Info

12-Digit UPC
389119021893
Color
Blue
GTiN
03389119021890
Product UPC
78590121909
Weight
0.02 kg

Dimensions

Depth
54 mm
Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBY2101
  • ZBY2303
  • ZB5AZ905
  • ZBZ32
Cross Sell Products
  • XALK84W3BE
