3M 8427-12 Cold Shrink Connector Insulators

Manufacturer: 3M | Catalog # 7000005943 | Echo Electric Part # 180699
$7,451.84/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
11 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
32 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Catalog Page
Quick and easy installation, no special tools and no heat requiredSeals tight, retains resiliency and pressureAccommodates a wide range of cable sizesResists acids, alkalis and ozoneNo mastic or tape required to seal

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Cable Type
Power Cable
Conductor Material
Aluminum,Copper
Conductor Size
125-200 mm
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Shielding Type
Non-shielded,Tape Shield,UniShield®,Wire Shield
Size
250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007344599
Color
Black
GTiN
00054007344599
Product Type
Splice
Product UPC
05400734459

Dimensions

Length
12 Inch
Overall Length
12.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • DESIGNED FOR PRIMARY INSULATION: For use with solid dielectric insulated wires and cable splicing rated to 1000 volts
  • QUICK, EASY INSTALLATION: Simple installation which requires no tools

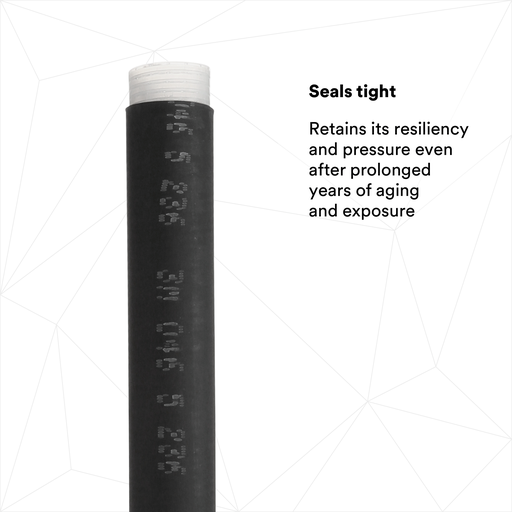

  • SEALS TIGHT: Retains its resiliency and pressure even after prolonged years of aging and exposure

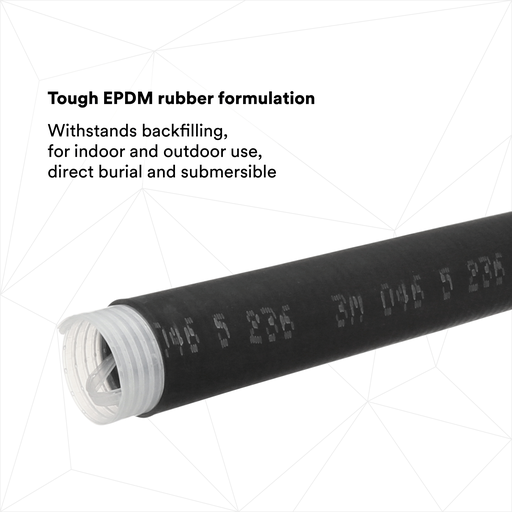

  • TOUGH EPDM RUBBER FORMULATION: Withstands backfilling, for indoor and outdoor use, direct burial and submersible
  • TEMPERATURE RANGE: Withstands temperatures of -40 to 194 °F (-40 to 90 °C)
  • WATER-RESISTANT: Meets the water seal requirements of ANSI C119.1
