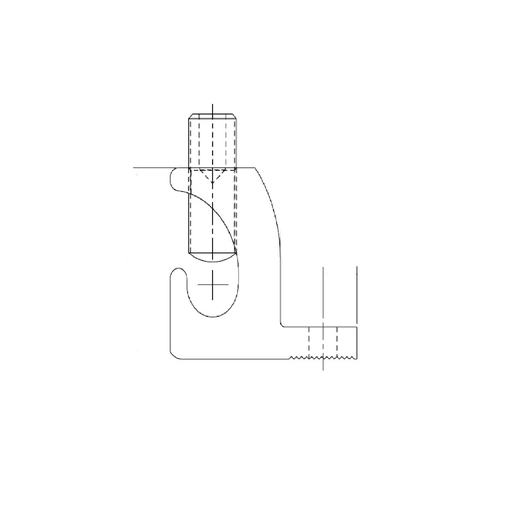

Product image for Burndy BGBL1/0 Aluminum Lay-in Lug, 1/0-14 AWG, 3/8" Stud, Tin Plated
Image thumbnail 0
Image thumbnail 1
Email

Burndy BGBL1/0 Aluminum Lay-in Lug, 1/0-14 AWG, 3/8" Stud, Tin Plated

Manufacturer: Burndy | Catalog # BGBL-1/0 | Echo Electric Part # 181129
$7.11/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
12 available

For Delivery

Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Product Spec Sheet
Aluminum Lay-in Lug, 1/0-14 AWG, 3/8" Stud, Tin Plated.

Technical Information

Applications
For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
Bolt Size
3/8-24
Conductor Material
Aluminum and Copper
Conductor Size
14-1/0 AWG
Conductor Type
Stranded
Material
Aluminum
Max Voltage
600 V
Mounting Hole Size
0.28 in
Plated?
Yes
Plating Type
Tin
Stud Size
3/8-24
Temperature Rating
90 degrees C
Type
BGBL
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Qiklug™

General Product Info

12-Digit UPC
781810124840
Finish
Electro-Tin Plated
GTiN
00781810124840
Product UPC
78181012484

Dimensions

Height
1.17 Inch
Hole Size
0.28 in
Length
1-1/2 Inch
Overall Length
38 mm
Width
0.60 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
Yes
Features
  • UL486B Listed, AL9CU Rated for copper and aluminum conductor combinations up to 90°C
  • UL Recognized for grounding and bonding
  • Lay-in feature eases installation
