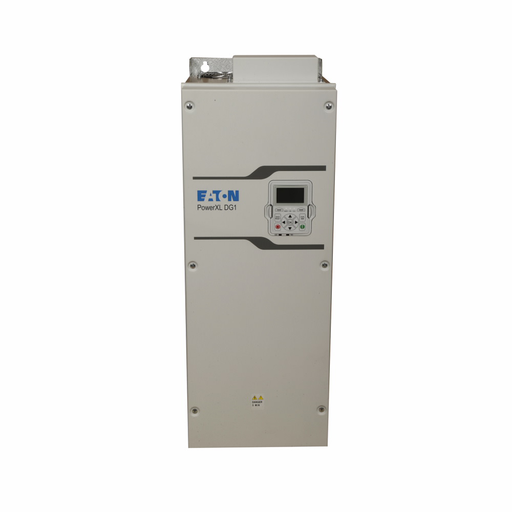

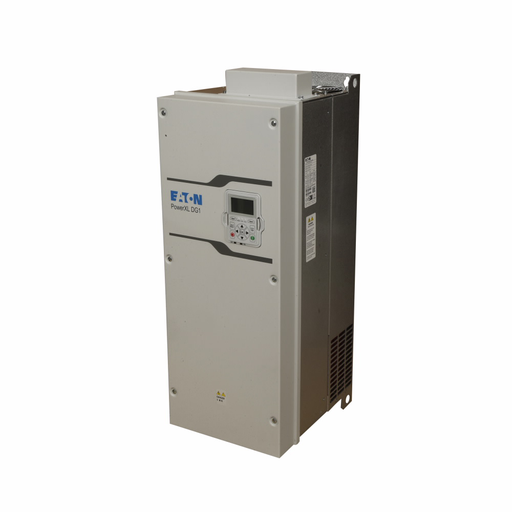

Product image for ETN DG1-34170FN-C21C DG1,480 FR5 ,N
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

ETN DG1-34170FN-C21C DG1,480 FR5 ,N

Manufacturer: Cutler-Hammer / Eaton | Catalog # DG1-34170FN-C21C | Echo Electric Part # 181796
$30,601.59/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Eaton PowerXL DG1 variable frequency drive, 380-500V input 90 kW 125 Hp CT 3PH 50/60 Hz 170A output IP21/type 1 enclosure FR6 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots

Technical Information

Amperage
90 Amp
Applications
Commercial, Institutional Buildings, Structures
Display Type
LCD
Enclosure
IP21,Type 1,Type 1 Enclosure
Enclosure Rating
1, IP21
Enclosure Type
IP21, Type 1, Frame 6
Frame
6
Frequency
50-60 Hz
Horsepower
125 hp
Input Voltage
380 V
IP Rating
IP21
Material
Coated Board
NEMA Size
1
Number of Phases
3 Phase
Power Rating
90 kW
Standard
C-Tick Compliant,CE Marked,EN 61800-3,EN 61800-5-1,EN 61800-5-2,EN 61800-6,EN 62061,EN ISO 13849-1,IEC 61508,RoHS Compliant,UL 508C
Type
Variable frequency drive
Voltage
400 Volt
Wattage
90 kW

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685878850
GTiN
00786685878850
Product UPC
78668587885
Weight
186 lb

Dimensions

Height
20 Inch
Length
44 Inch
Width
18 in
