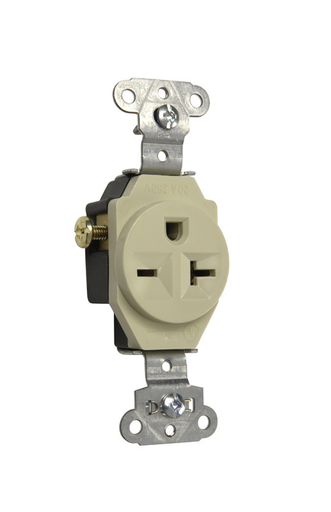

Pass & Seymour 5851-I Heavy-Duty Spec Grade Single Receptacle, Side Wire 20Amp 250Volt, Ivory

Manufacturer: Pass & Seymour / Legrand | Catalog # 5851I | Echo Electric Part # 181928
$14.61/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
177 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, White

Technical Information

Amperage
20 Amp
Applications
Commercial,Residential
Capacity
Single
Conductor Size
4 AWG
Connection Type
Wire Ground, Side Wire
Duty Rating
Heavy Duty
Grade
Residential/Commercial
Material
Thermoplastic
Mounting Type
Wall, Flush
NEMA
6-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.3 in
TC Connection
Wire Ground
Type
Single Receptacles
Voltage
250 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007585117
Color
Ivory
Finish
Gloss
GTiN
00785007585117
Product UPC
78500758511
UNSPSC
39121406

Dimensions

Depth
1.08 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
