PAN UTP6AX15BU Cat 6A 24 AWG UTP Co

Manufacturer: Panduit Corp | Catalog # UTP6AX15BU | Echo Electric Part # 182521
$42.91/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet

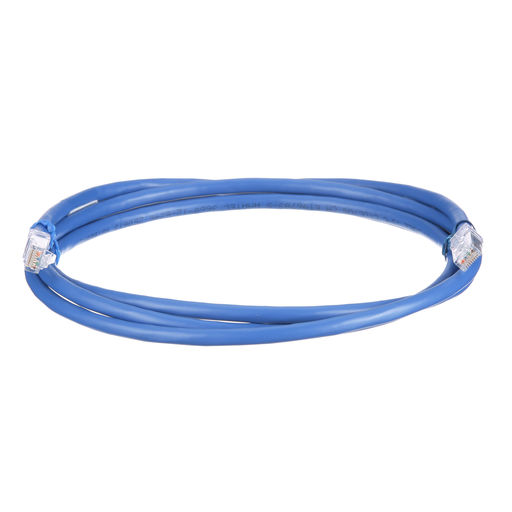

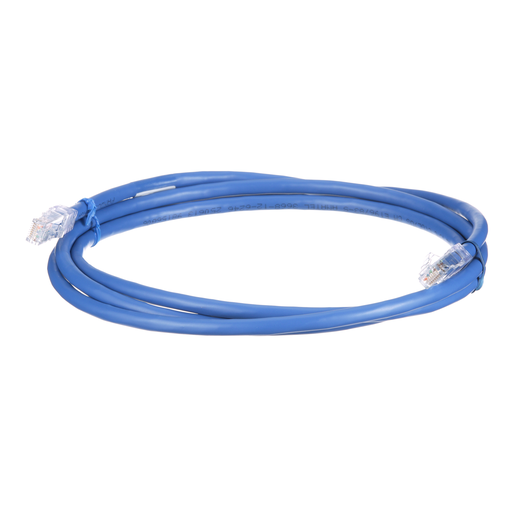

The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with enhanced performance modular plugs. The patch cord offers a small 0.250 inch (6.4mm) cable diameter. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 15 feet and blue.

Technical Information

Applications
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
Boot Color
Clear
Conductor Type
Solid
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Temperature Rating
140 ??degrees F
Type
Patch Cord

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Net®

General Product Info

12-Digit UPC
613056770669
Color
Blue
GTiN
00613056770669
Jacket Material
Polyvinyl Chloride
Product UPC
61305677066

Dimensions

Outside Diameter
NA In.
Overall Length
15 ft

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
Prop 65
  • N
