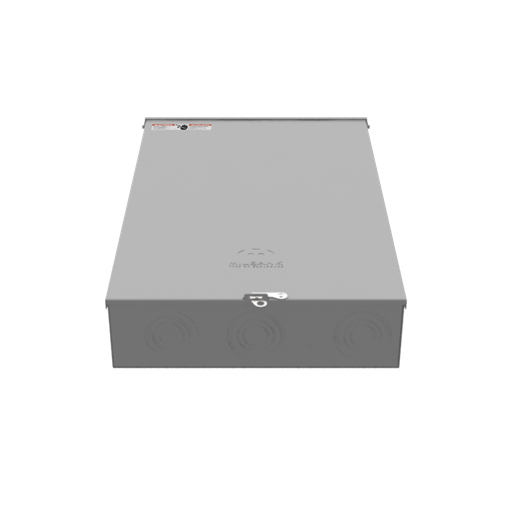

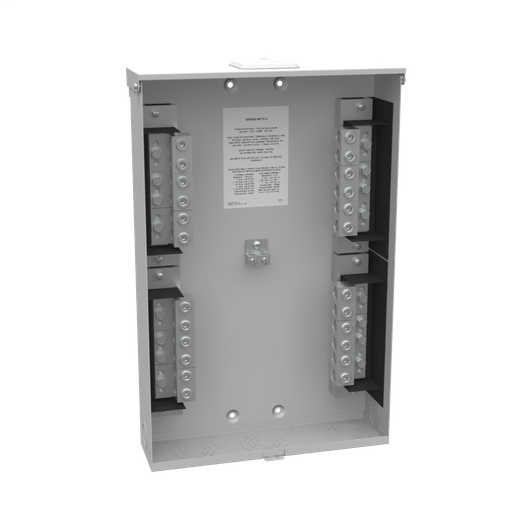

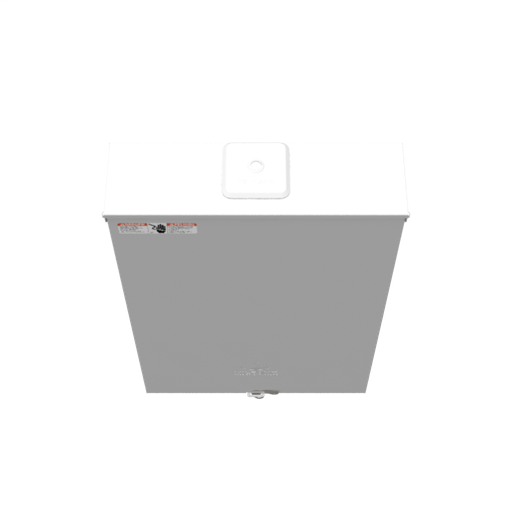

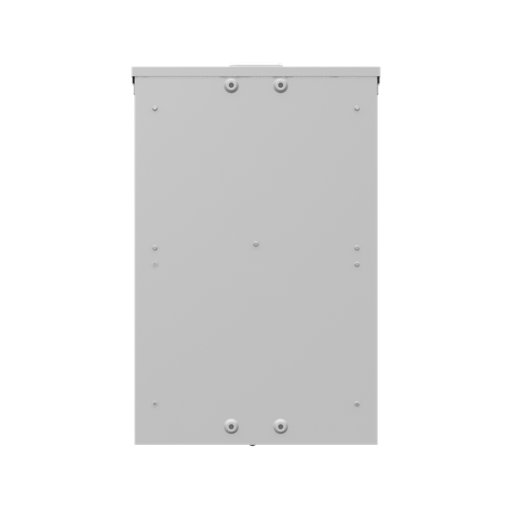

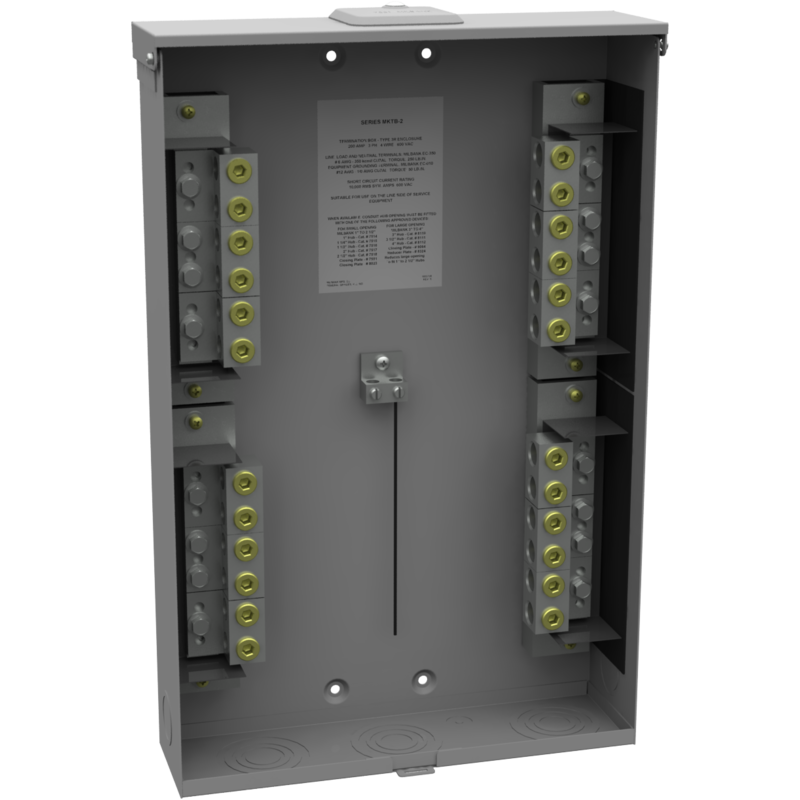

Product image for Milbank U4542-XL 200 Ampere 3 Phase 600 Volt 15in-23in-4in Painted Steel Lift Off Front Hasp 6 Lugs Per Landing 10k Short Circuit Current Rating
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Milbank U4542-XL 200 Ampere 3 Phase 600 Volt 15in-23in-4in Painted Steel Lift Off Front Hasp 6 Lugs Per Landing 10k Short Circuit Current Rating

Manufacturer: Milbank Mfg. Co | Catalog # U4542-XL | Echo Electric Part # 185396
$601.18/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
200 AMP 3PH 600 VOLT 15IN-23IN-4IN PNTD STL LIFT OFF FRONT HSP 6 LUGS PER LND 10K SCCR

Technical Information

Amperage
200 Amp
Applications
Termination Cabinet
Conductor Material
Copper and Aluminum
Connection Type
3 Positionss 6 AWG To 350 Kcmil Line Side Lugs,3 Positionss 6 AWG To 350 Kcmil Load Side Lugs
Insulation Material
Polypropylene
Material
Steel
Number of Conductors
6
Number of Phases
3 Phase
Short Circuit Current
10000 A
Size
4.125L x 14.813W x 23H
Standard
Type 3R,UL Listed
TC Connection
6 AWG to 350 kcmil Line Side Lugs and 6 AWG to 350 kcmil Load Side Lugs
Type
Line To Load Distribution
Voltage
600 Volt

Manufacturer Information

Brand
Milbank Manufacturing

General Product Info

12-Digit UPC
784572230552
Color
Gray
Construction
G90 Galvanized Steel
Construction Features
G90 Galvanized Steel,Type 3R
Finish
Powder Coated
GTiN
00784572230552
Jacket Material
No Jacket Material
Product UPC
78457223055

Dimensions

Height
23 Inch
Length
4-1/8 Inch
Width
14.813 in
