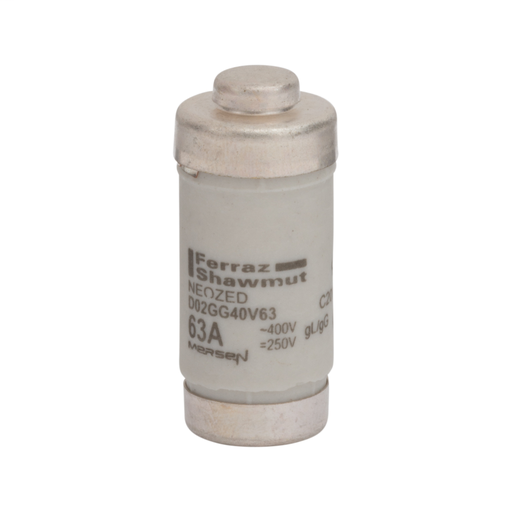

Product image for Mersen C201873 D02-SICH.EINSATZ 63A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Mersen C201873 D02-SICH.EINSATZ 63A

Manufacturer: Ferraz Shawmut | Catalog # C201873 | Echo Electric Part # 194261
$42.96/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
The D0 fuse-system is installed in low voltage distribution units, where fuse-links are accessible to non trained persons and can also be replaced by them.The system is the most modern of the screw systems and designed for 400VAC/250VDC networks.The D0 fuse range comprises the standardized fuse sizes D01, D02 and D03.The range of applications for D0 fuse-links for general application is the protection of cables and power lines. They limit and cut off unacceptable overcurrents and short circuit currents up to their nominal breaking capacity. D0 fuse-links "gG" also protect equipments and installations against dynamic effects of high short circuit currents.

Technical Information

Amperage
63 Amp
Applications
protection of cables and power lines
Insulation Material
Ceramic
Mounting Type
Clip
Rated Voltage AC
400 V
Rated Voltage DC
250 V
Type
DIN LV Fuse-Links D0
Voltage
400 VAC

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
4086500010134
GTiN
34086500010135
Product UPC
08650001013
Weight
0.026 lb

Dimensions

Diameter
0.59 Inch
Length
1.42 Inch

Certifications and Compliance

Country of Origin
Hungary
Features
  • Insulated body suitable for high mechanical and thermal impacts
  • Top and bottom contacts made of nickel plated or silver plated copper alloy
  • Safe cut-off short circuits and over currents due to special design of fuse element
  • Clear indication of operation condition due to coloured indicator un top contact
  • Low power dissipation
  • Optimized size
  • Resistant to aging
Certifications
  • DIN VDE 0636-3
