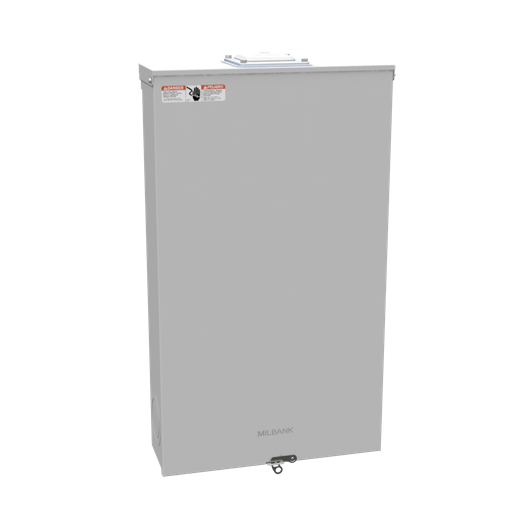

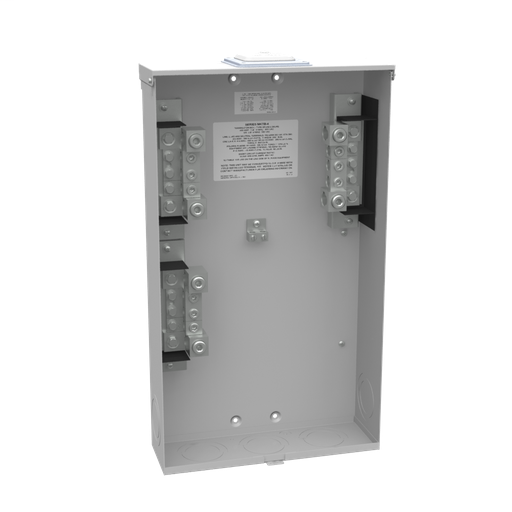

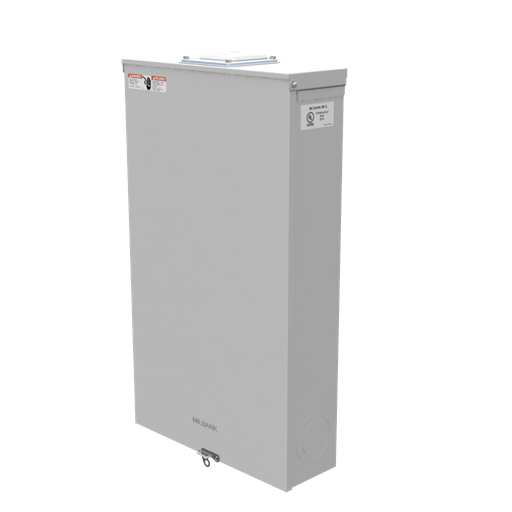

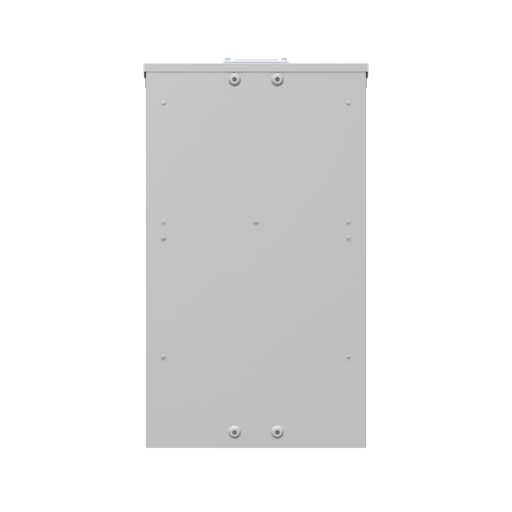

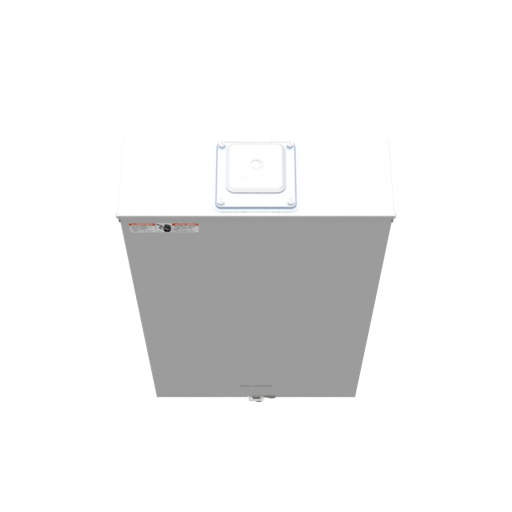

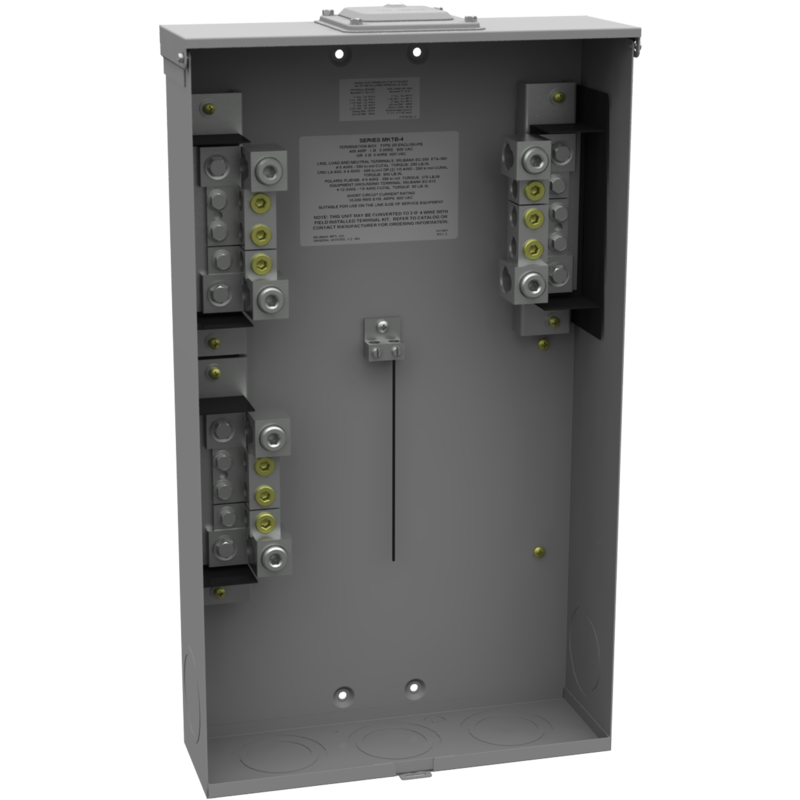

Product image for Milbank U4548-RXL 400 Ampere 1phase 600 Volt 16in-27in-5in Painted Steel Lift Off Front Hasp 5 Lugs Per Landing 10k Short Circuit Current Rating
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Milbank U4548-RXL 400 Ampere 1phase 600 Volt 16in-27in-5in Painted Steel Lift Off Front Hasp 5 Lugs Per Landing 10k Short Circuit Current Rating

Manufacturer: Milbank Mfg. Co | Catalog # U4548-RXL | Echo Electric Part # 196819
$1,047.80/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
400 AMP 1PH 600 VOLT 16IN-27IN-5IN PNTD STL LIFT OFF FRONT HSP 5 LUGS PER LND 10K SCCR

Technical Information

Amperage
400 Amp
Applications
Termination Cabinet
Conductor Material
Copper and Aluminum
Connection Type
Line And Load Side Lugs,Single Position 4 AWG To 600 Kcmil And 3 Positionss 6 AWG To 350 Kcmil And Single Position 4 AWG To 600 Kcmil
Insulation Material
Polypropylene
Material
Steel
Number of Conductors
5
Number of Phases
1 Phase
Short Circuit Current
10000 A
Size
5L x 15.5W x 27H
Standard
Type 3R,UL Listed
TC Connection
4 AWG to 600 kcmil and 6 AWG to 350 kcmil and 4 AWG to 600 kcmil and Line and Load Side Lugs
Type
Line To Load Distribution
Voltage
600 Volt

Manufacturer Information

Brand
Milbank Manufacturing

General Product Info

12-Digit UPC
784572230613
Color
Gray
Construction
G90 Galvanized Steel
Construction Features
G90 Galvanized Steel,Type 3R
Finish
Powder Coated
GTiN
00784572230613
Jacket Material
No Jacket Material
Product UPC
78457223061

Dimensions

Height
27 Inch
Length
5 Inch
Width
15.5 in
