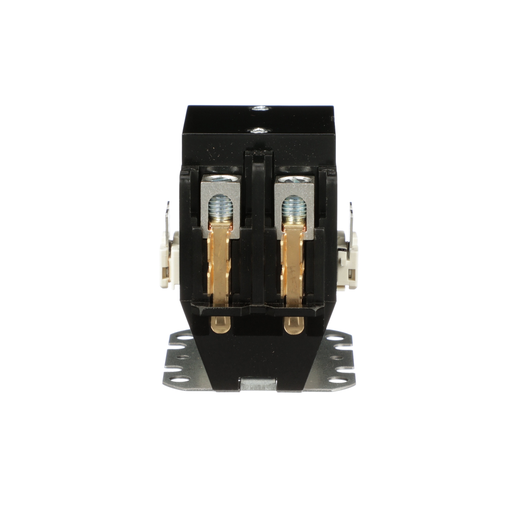

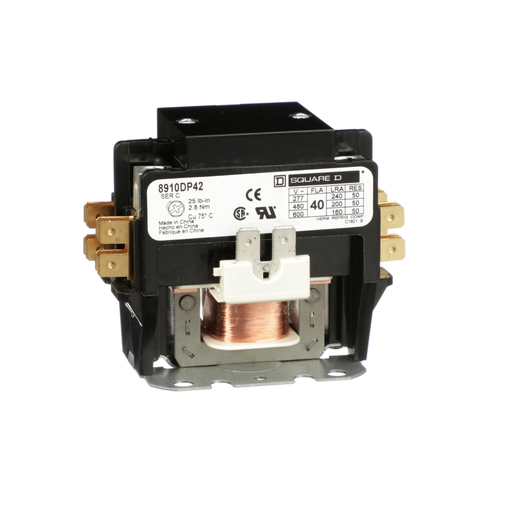

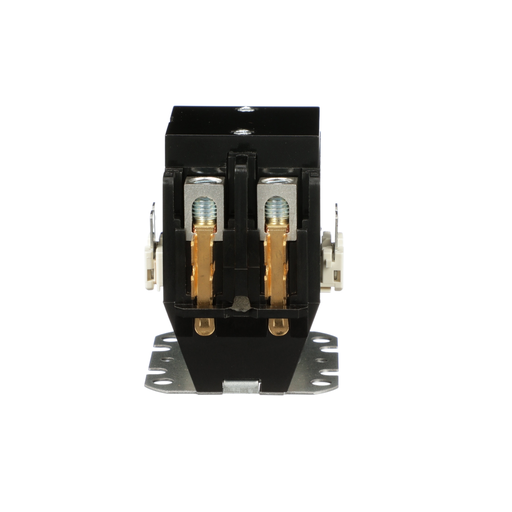

Product image for Square D 8910DP42V14 24 VAC 40 Amp 2-Pole 2NO NEMA 1 Non-Reversing Definite Purpose Contactor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D 8910DP42V14 24 VAC 40 Amp 2-Pole 2NO NEMA 1 Non-Reversing Definite Purpose Contactor

Manufacturer: Square-D / Schneider | Catalog # 8910DP42V14 | Echo Electric Part # 197747
$128.57/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.

Technical Information

Amperage
40 Amp
Applications
IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Coil Voltage
24 V AC 50/60 HZ,600 V AC
Contact Configuration
2 NO
Contact Rating
40 A
Line Rated Current
40 A
Number of Phases
1 Phase
Number of Poles
2 Pole
Size
2P
TC Connection
Quick connect terminals;Box lugs
Type
Definite Purpose Contactor
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
DP

General Product Info

12-Digit UPC
785901024200
GTiN
00785901024200
Product UPC
78590102420

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
China
Compatible Products
  • 9991DPG1
