3M 7100117646 3M™ Scotchcast™ Inlin

Manufacturer: 3M | Catalog # 7100117646 | Echo Electric Part # 201291
$23,457.38/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
4 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Catalog Page

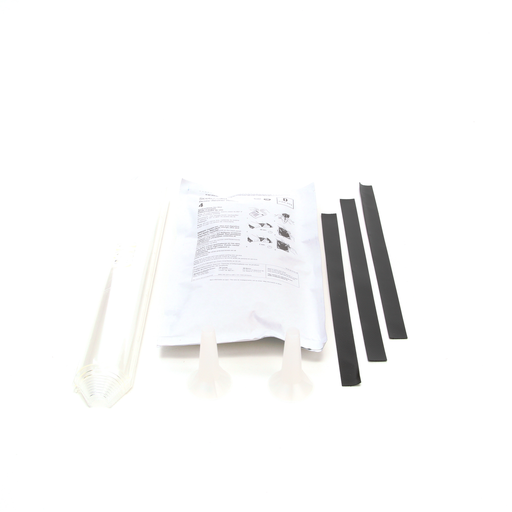

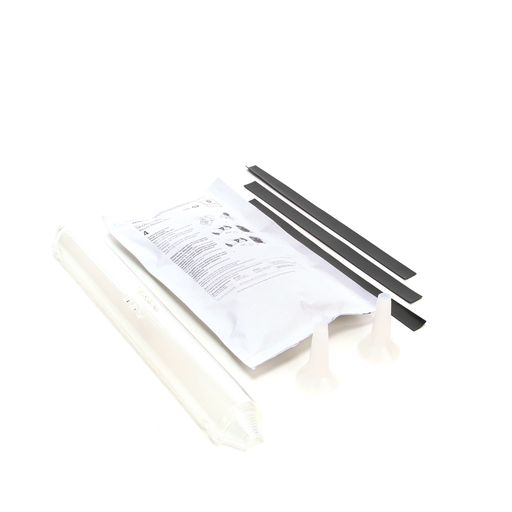

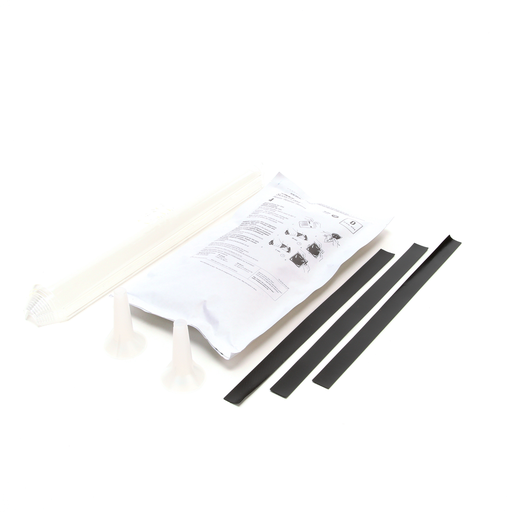

3M™ Scotchcast™ Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single-conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather-exposed or direct burial locations.

Technical Information

Applications
Use in Weather-Exposed or Direct-Burial Locations
Conductor Size
3/0 AWG-400 kcmil
Dielectric Strength
500 mV
Material
Epoxy
Shielding Type
Single Conductor Portable Cable
Splice Type
Inline
Standard
UL
Type
Inline, Cast Resin
Voltage
5 kV

Manufacturer Information

Brand
3M
Sub Brand
Scotchcast

General Product Info

12-Digit UPC
051128613436
Color
Black
GTiN
00051128613436
Product Series
82-A Series
Product Type
Splice
Product UPC
05112861343
Used With
1 - 1.563 in Insulation OD

Certifications and Compliance

Country of Origin
USA
Features

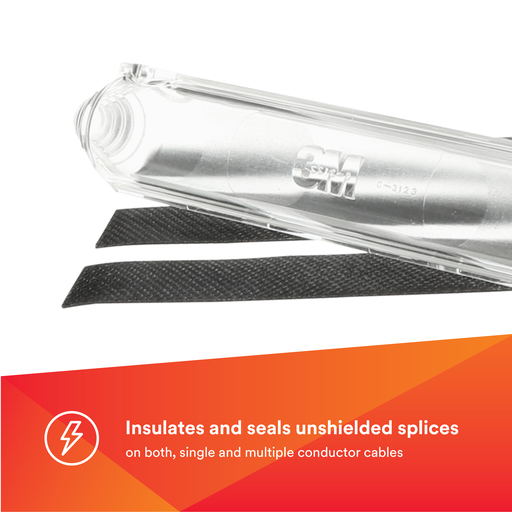

  • INSULATES AND SEALS: Unshielded, single conductor cables and multiple conductor cables
  • ENGINEERED VERSATILITY: Make inline splices on 5 kV cables and multiple conductor cables through 1 kV
  • SPLICE AND RE-JACKET: Designed to splice or re-jacket non-shielded portable power cables and portable cords
  • DESIGNED FOR THE ELEMENTS: Designed for weather-exposed or direct burial locations
  • FAST AND EASY: Permanent watertight protection for submerged applications up to 600 V and 90C
  • QUICK CURE TIME: Cures in about 1-2 hours (pending temperature/conditions)
