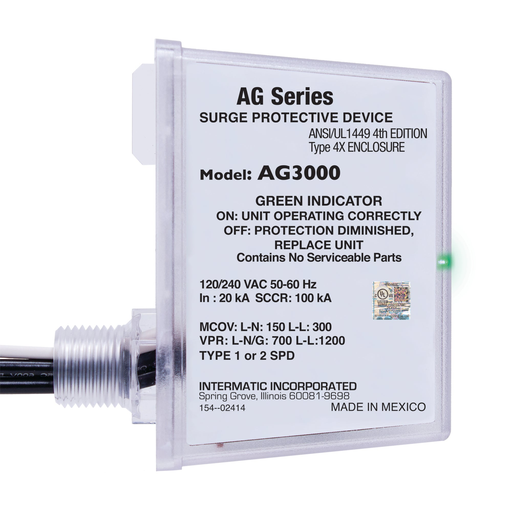

Intermatic AG3000 120/240 VAC 10 kA In Rating ANSI/UL1449 3rd Edition 1-Phase Surge Protection Device

Manufacturer: Intermatic, Inc | Catalog # AG3000 | Echo Electric Part # 210542
$69.97/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Closes 5:00pm CT
2 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator provides the status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. UL Listed to ANSI/UL 1449, 4th Edition.

Technical Information

Applications
HVAC Equipment (AC/Furnaces)
Connection Type
18 IN Lead
Enclosure Type
Type 4X
Frequency
50/60 Hz
Material
Polycarbonate
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C
Mounting Configuration
Mount to panelboard or enclosure
Mounting Type
Mount to panelboard or enclosure
Nominal Discharge Current
10 kA
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
5 Wire
Operating Temperature
140 degrees F
Size
1/2 IN - 20
Standard
CSA - UL 1449 3rd Edtion
TC Connection
18 in Lead
Temperature Rating
-25 to 60 degrees C Operating
Type
Type 1/Type 2
Voltage
240 Volt
Wire Count
5
Wire Length
457.2 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275130678
Class
Surge Protection
Color
Clear
Environmental Conditions
-4 to 104 F
Finish
Plastic
GTiN
00078275130678
Product Category
Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords
Product Series
AG
Product Type
Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords
Product UPC
07827513067
Used With
HVAC, electronics

Dimensions

Depth
4.188 Inch
Height
3-7/8 Inch
Warranty Length
3 yr
Width
1.625 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Three modes of protection: L-G, L-L, L-N
  • TPMOV® surge protection technology
  • Green LED indicator provides status of protection
  • Type 4X watertight and UV resistant plastic enclosure
  • 3-year product warranty
  • $7,500 connected equipment warranty for 3 years
  • UL Listed to ANSI/UL 1449 5th edition
  • NA
