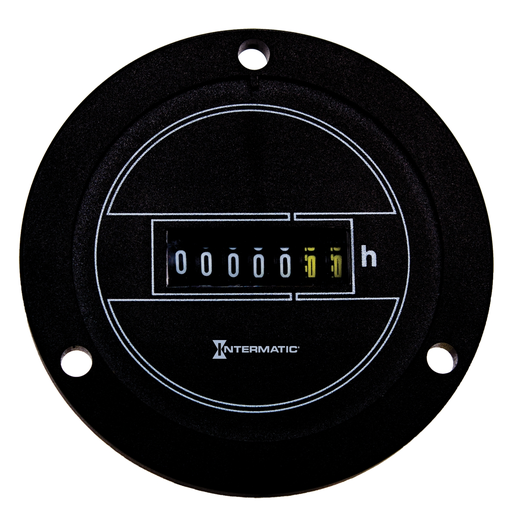

Intermatic FWZ72-120U 120V 60HZ 1VA FLUSH-PANEL 2.83" RND BZL

Manufacturer: Intermatic, Inc | Catalog # FWZ72-120U | Echo Electric Part # 212823

$41.86/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
The FWZ Series AC Hour Meters are flush panel mountable designed to fit into tight locations. They are non-resettable and flush panel mounted with watertight/dust-tight sealed bezels designed to withstand IP54 environmental rating (with use of a gasket). All models are black plastic (except FWZ72B which is blue-silver on colorless frosted polycarbonate) with white numerals on a black background. Tenths and hundredths numerals are yellow.

Technical Information

Applications
Distribution/Control Panel,Monitoring
Capacity
99999.99 HR
Display Type
Analog, Digital
Frequency
60 Hz
Input Voltage
120 V
IP Rating
IP54
Max Operating Temperature
160 degrees C
Min Operating Temperature
-40 degrees C
Mounting Type
Flush-Panel Mount
Power Consumption
1 VA
Standard
CE,CSA,UL Recognized
Temperature Rating
160 degrees F
Type
Non-Resettable, AC Hour Meter
Voltage
120 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
614573270106
Color
Black
GTiN
00078275153165
Product UPC
61457327010
Weight
1.8 OZ

Dimensions

Depth
2.16 Inch
Warranty Length
1 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • NA
