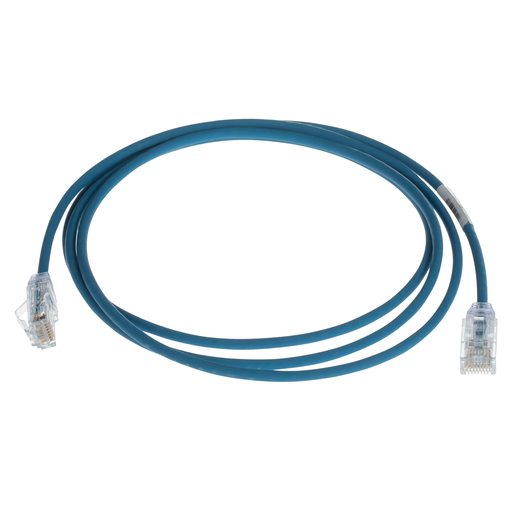

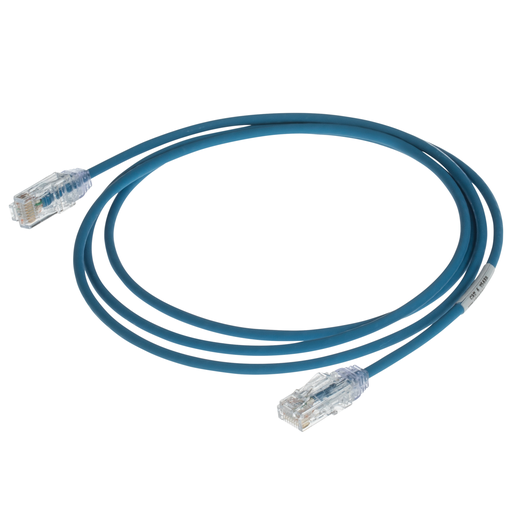

Product image for Panduit UTP28SP5BU Cat 6 28 AWG UTP Copper Patch Cord, 5 ft, Blackue
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit UTP28SP5BU Cat 6 28 AWG UTP Copper Patch Cord, 5 ft, Blackue

Manufacturer: Panduit Corp | Catalog # UTP28SP5BU | Echo Electric Part # 214748
$22.01/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
20 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The TX6-28™ Cat 6 UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 5 feet in length, 0.150 inches (3.8mm) nominal in diameter, and blue.

Technical Information

Boot Color
Clear
Cable Type
28 AWG U/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
167 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6
Plug Type
Modular Plug with Bulkhead and Dust Cap
Standard
ANSI\IEEE (Category C-62.41, C-62.45),CULus Listed (1449),NEMA
Type
Category 6, Small Diameter
Wire Size
28 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983652198
Color
Blue
GTiN
00074983652198
Jacket Material
LSZH Material
Product UPC
07498365219

Dimensions

Cable Length
5 ft
Length
5 Foot
Outer Diameter
0.15 in
Outside Diameter
3.8 mm
Overall Length
5 ft

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
China,Costa Rica,Romania
Prop 65
  • No
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); UL94V-0 rated; RoHS Compliant
