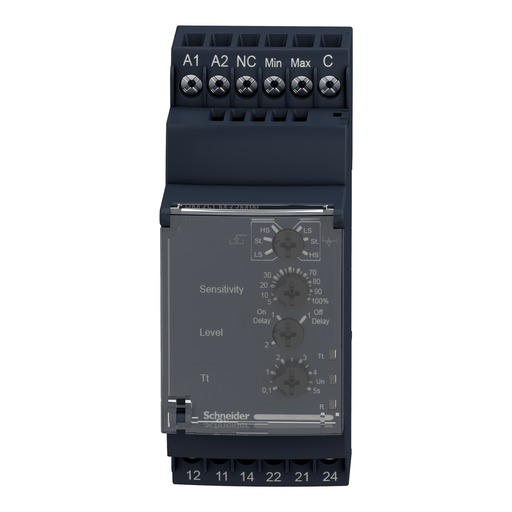

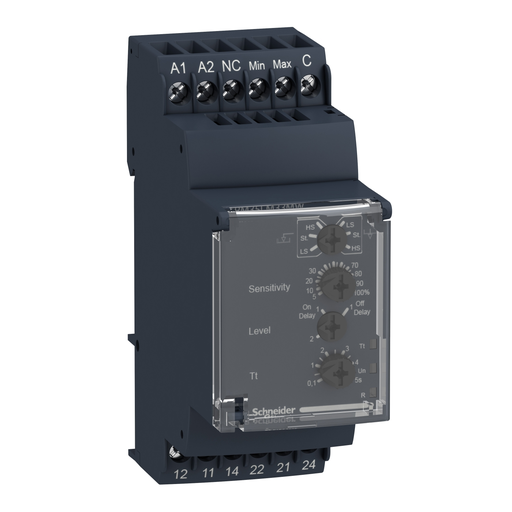

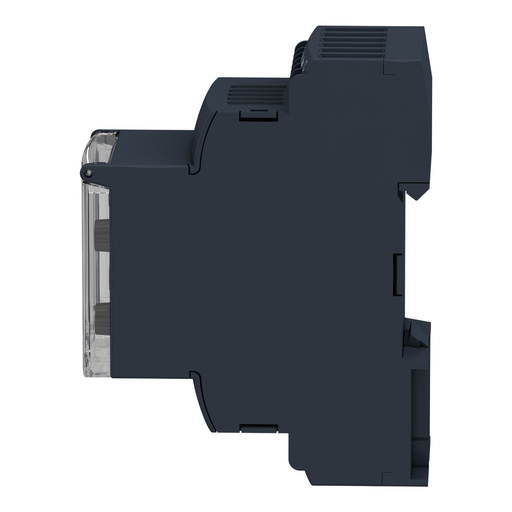

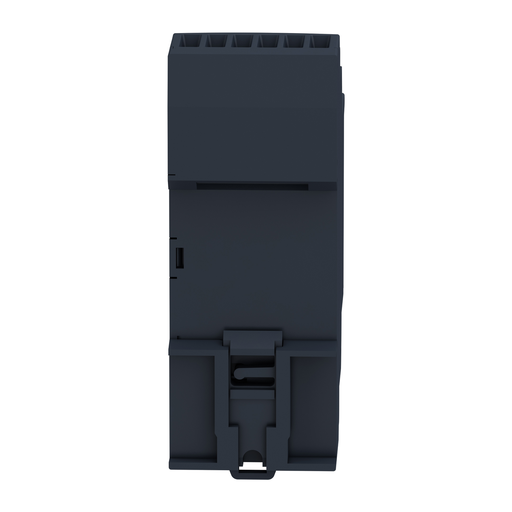

Product image for Square D RM35LM33MW LEVEL RELAY 250V 5AMP RM35
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D RM35LM33MW LEVEL RELAY 250V 5AMP RM35

Manufacturer: Square-D / Schneider | Catalog # RM35LM33MW | Echo Electric Part # 216677
$179.05/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RM35-LM relay allows monitoring of level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
2 C/O
Applications
LEVEL CONTROL BY RESISTIVE PROBES
Contact Configuration
5 A
Contact Rating
250 V AC/DC,5 A AC/DC
Enclosure
IP20 (TERMINALS) CONFORMING TO IEC 60529-IP30 (CASING) CONFORMING TO IEC 60529
Line Rated Current
5 A
Operating Cycles
360
Operating Temperature
-20-50 Adegrees C
Power Consumption
5 VA AC;1.5 W DC
Size
35 MM
Standard
IEC 60255-6
Storage Temperature
-40-70 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.5...1 X 4 MMA AWG 20...AWG 11) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA AWG 24...AWG 16) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 12) FLEXIBLE WITH CABLE END
Type
LEVEL CONTROL RELAY,MODULAR MEASUREMENT AND CONTROL RELAYS

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RM35L

General Product Info

12-Digit UPC
389119405235
GTiN
03389119405232
Housing Material
Plastic
Product UPC
78590156579

Dimensions

Warranty Length
18 mth
Width
35 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RM79696043
  • LA9RM201
Cross Sell Products
  • RM22LA32MR
  • RM35LV14MW
  • RM22LG11MR
