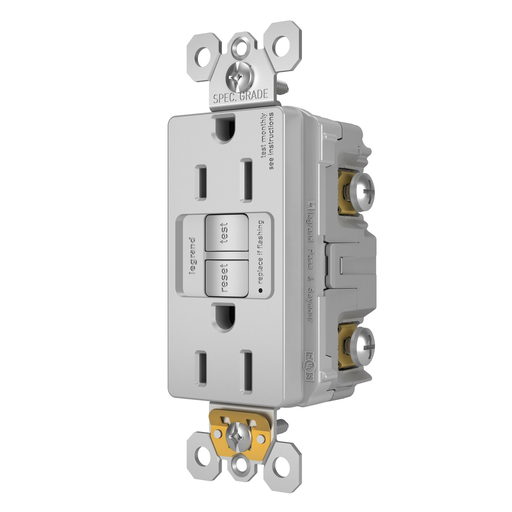

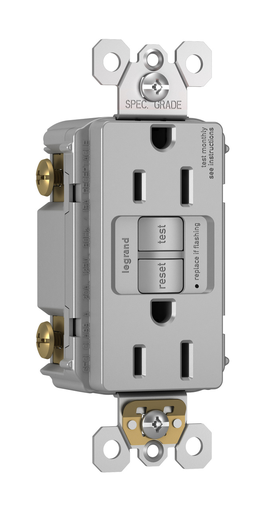

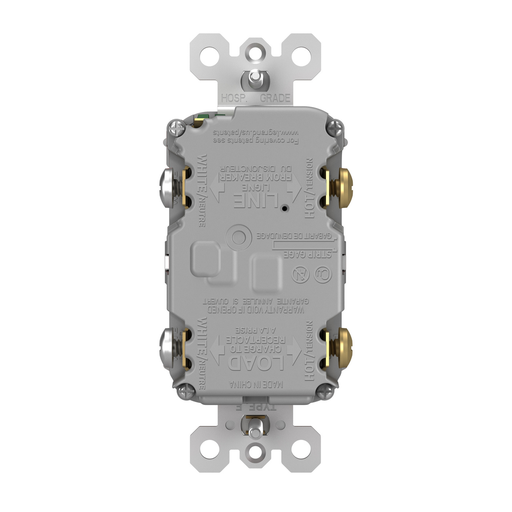

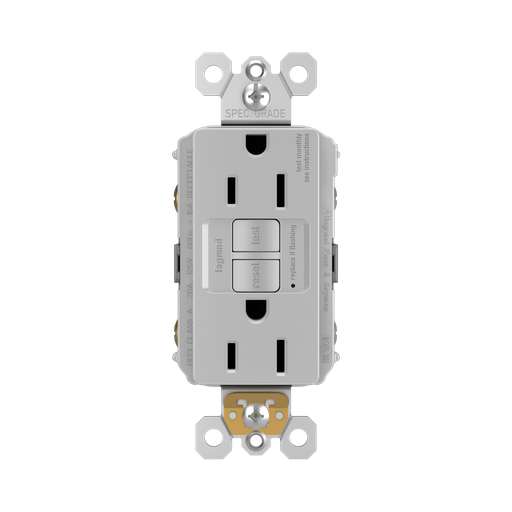

Product image for Pass & Seymour 1597-GRY 15A 125V Self-Test GFCI, Gray
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

Pass & Seymour 1597-GRY 15A 125V Self-Test GFCI, Gray

Manufacturer: Pass & Seymour / Legrand | Catalog # 1597-GRY | Echo Electric Part # 225873

$28.78/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
39 available

For Delivery

Not in local stock *
Check another branch
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Technical Information

Actuator
Control Circuit
Amperage
15 Amp
Applications
Commercial, Residential Grade
Capacity
15A
Connection Type
Back and Side Wire
Frequency
60 Hz
Grade
Specification
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplastic
Mounting Type
Flush
NEMA
15A
Number of Gangs
1 Gang
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Indoor,Self-Test
TC Connection
Back and Side Wire
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Self-Test
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007035841
Color
Gray
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Gloss
GTiN
00785007035841
Product UPC
78500703584

Dimensions

Depth
1-1/4 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected
  • Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly
  • Replaces any standard receptacle with ease, in as little as 10 minutes
  • Features durable, high-impact resistant thermoplastic construction
  • More color options available to fit any style, including finishes to match current hardware and lighting trends
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection
Certifications
  • UL Listed
  • cULus Listed
