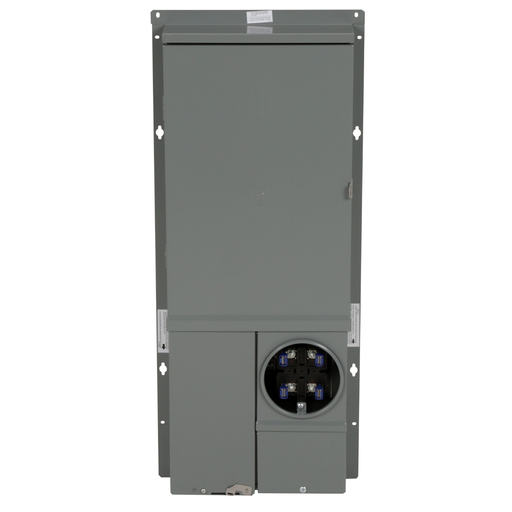

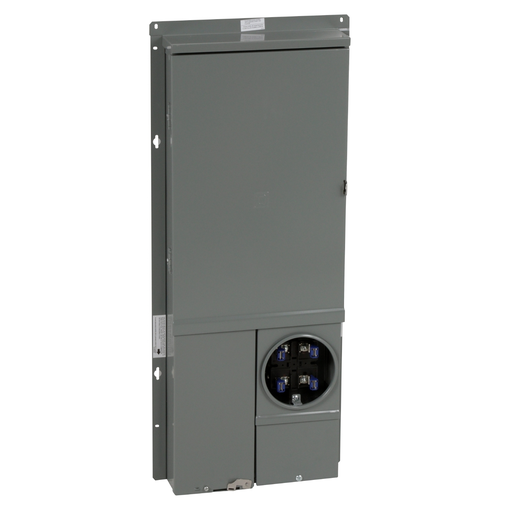

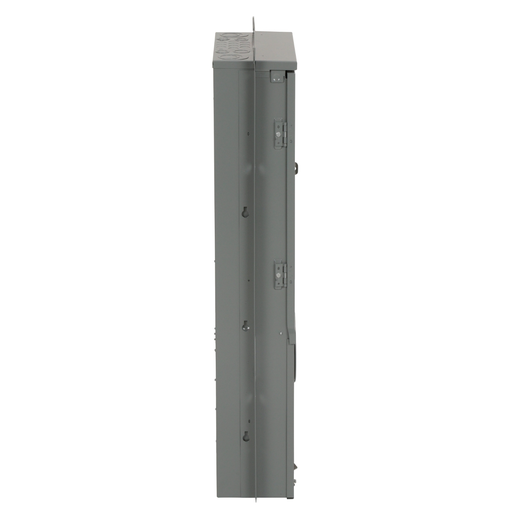

Product image for Square D SC2040M125PF Solar Ready Main Breaker Load Center 125A 20/40 Space Comb. Service Entrance
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

Square D SC2040M125PF Solar Ready Main Breaker Load Center 125A 20/40 Space Comb. Service Entrance

Manufacturer: Square-D / Schneider | Catalog # SC2040M125PF | Echo Electric Part # 228203

$224.80/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service with the addition of tunnel kit (SCTKP20) or underground service. The service disconnect is a QOM2125VH with a maximum rating of 125 A. Device has a 22 kA short circuit current rating. Load center has 20 spaces which will accept up to 20 tandem Homeline circuit breakers. This unit has a NEMA 3R semi flush mount enclosure that is 39.80 inches tall, 16.80 inches wide and 3.40 inches deep. The line side lugs will accept 4 AWG to 250 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.

Technical Information

Amperage
125 Amp
Cable Entry
UG-OH OUTDOOR
Conductor Size
8-2/0 AWG
Enclosure
GREY
Line Rated Current
125 A
Mounting Type
Semi Flush (outdoor)
Number of Circuits
40
Number of Phases
1 Phase
Number of Spaces
20
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Size
16.8 IN,39.8 IN
Type
ALL-IN-ONE,RINGED
Wire Size
AWG 8...AWG 2/0 aluminium/copper)service ground;AWG 4...250 kcmil aluminium/copper)line side

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901903826
Color
Gray
GTiN
00785901903826
Product UPC
78590190382

Dimensions

Depth
3.4 Inch
Height
39.8 Inch
Width
16.80 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ACP
  • HOM2175SB
  • LK100AN
  • QOM2125VH
  • SR69064A
  • 5J
  • HEPD25
  • HOM220GFI
  • HEPD50
  • HOM120
  • SCTKP20
  • HEPD80
  • HOM120PDF
  • SR69064AF
  • A200L
  • HOM115PCAFI
  • HOM250PSPD
  • A250L
  • HOMFP
  • PK15GTA
