Blackburn PAE9939-9 Extruded Parallel Groove Clamp

Manufacturer: Thomas & Betts Co | Catalog # PAE9939-9 | Echo Electric Part # 235265
$70.28/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 1000 kcmil-397.5, ACSR 336.4-2/0 AR Tap: 397.5 ACSR-3/0 Stranded, 2/0-6 AR

Technical Information

Applications
Securing Conductors
Bolt Size
1/2 in
Material
Aluminum
Number of Conductors
2
Size

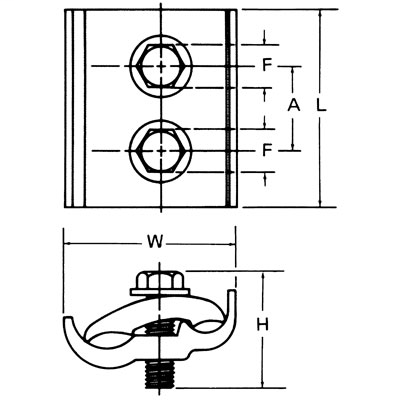

Height 2-13/16 X Length 3-1/2 X Width 3-7/64 inch, Bolt 1/2 inch
TC Connection
Bolted
Type
Extruded

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786330379
GTiN
00783786330379
Product UPC
78378633037
Features
  • For use on aluminum to aluminum or aluminum to copper connections with oxide inhibitor. Can be installed with live line tools.
  • Standard PAE clamp is supplied with Contax (-9) and galvanized steel hardware.
Notes
  • Tin plating (-P) or wax dip (-6) must be specified for without oxide inhibitor-filled connectors.
  • Options: 7 Aluminum hardware, P Tin plating, 6 Wax dip for oxide protection.
