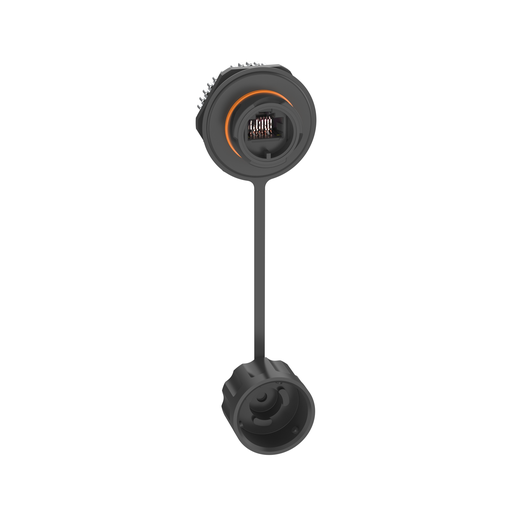

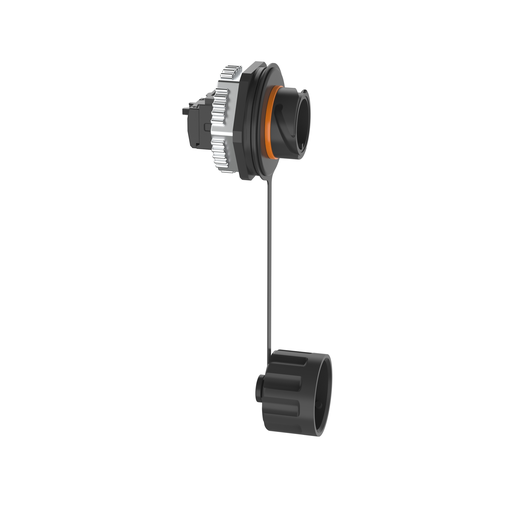

Panduit IAEBH6XS Industrial Cat 6A RJ45 Shielded Bulkhead Connector

Manufacturer: Panduit Corp | Catalog # IAEBH6XS | Echo Electric Part # 243927
$175.17/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual
The IndustrialNet™ Cat 6A shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.

Technical Information

Applications
Shielded
Cable Size
24 AWG
Cable Type
Category 6a
Material
PBT
Max Operating Temperature
158 degrees F
Min Operating Temperature
-20 degrees C
Number of Positions
8
Temperature Rating
-20 to 70 degrees C
Type
RJ45, Shielded, 8-Wire, Bulkhead

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™, TX6A™

General Product Info

12-Digit UPC
613056108677
Color
Black
Environmental Conditions
-4 F Storage Temperature
GTiN
00613056108677
Product UPC
61305610867
Used With
T568A/T568B Cable

Dimensions

Depth
1.67 Inch
Height
5.37 Inch
Overall Length
5.37 in
Width
1.55 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Channel and Category 6A and ISO11801 Class EA Standards at Swept Frequencies 1 to 500 MHz, Plug Meets IEC 60603-7, Industrial Bulkhead Connection Protects and Seals Connections against Dust and Water Immersion to ANSI/IEC 60529-2004, Meets ANSI/TIA-1096-A, Bulkhead Connection Rated IP65/ P67, Bulkhead Connection Rated UL Type 12, Meets IEEE 802.3af and IEEE 802.3at for PoE Applications, and RoHS Compliant
