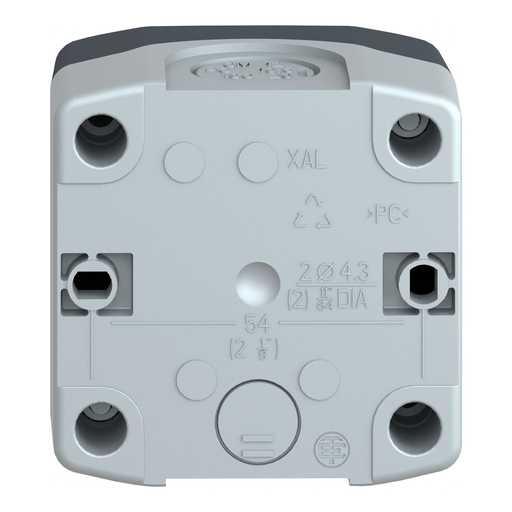

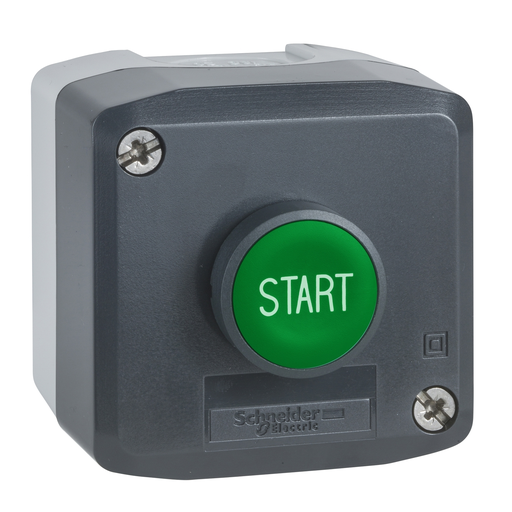

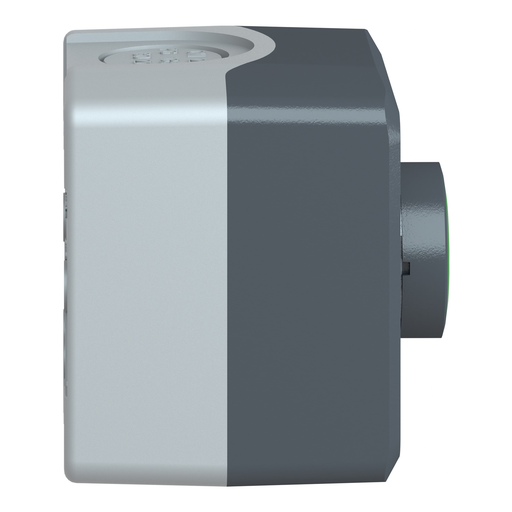

Product image for Square D XALD101H29H7 600 VAC 300 VDC 10 Amp 1NO Polycarbonate Push Button Control Station
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XALD101H29H7 600 VAC 300 VDC 10 Amp 1NO Polycarbonate Push Button Control Station

Manufacturer: Square-D / Schneider | Catalog # XALD101H29H7 | Echo Electric Part # 244094
$100.93/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This Harmony XALD, is a complete ready to use control station for start function. It has 1 flush push button, green with START marking on legend holder. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. This control station provides a good resistance to chemical agents, thanks to its electrical double insulation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides a polycarbonate double insulated enclosure with a light grey (RAL 7035) base of enclosure and a dark grey (RAL 7016) cover. This control station is ideally suited for industrial, buildings, and infrastructure applications. This control station complies with IEC, UL, CSA standards, as well as CE marking. It is also UL listed and CSA certified. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads

Technical Information

Actuator
1 FLUSH PUSH-BUTTON, GREEN 1 NO START
Amperage
6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications
Start function;For XB5 22 mm control and signalling units
Cable Entry
14-14 mm
Contact Material
Silver Alloy
Contact Rating
Slow-break
Enclosure
Polycarbonate
Material
Polycarbonate
Net Weight
0.157 kg
Operating Force
3.8 N
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Complete control station;Green ''START'' 1 NO

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XALD

General Product Info

12-Digit UPC
606480502685
Color
DARK GREY RAL 7016)
GTiN
03606480502682
Product UPC
78590113543
Weight
0.157 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
France
Compatible Products
  • ZBZ28
  • ZBY2101
  • ZB4FBZ014
Cross Sell Products
  • XB5AA31
Spare Part Products
  • ZB5AA333
  • XALD01H7
