ABB Elastimold K656DRG 600 Amp, 15/25kV, 600 Series Deadbreak Insulated Cap w/ Test Point (with Stud), w/ Ground.

Manufacturer: Thomas & Betts Co | Catalog # K656DRG | Echo Electric Part # 246218
$551.47/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
600 Amp, 15/25kV, 600 Series Deadbreak Insulated Cap with Test Point (with Stud), with Ground.

Technical Information

Applications
The insulated cap is designed to insulate, shield, and water seal 15/25kV, 600 Amp IEEE Std. 386 bushing interfaces. Units have a capacitance test point which can be used to check if the system is energized. A threaded stud attachment is standard.
Material
Rubber
Size
3.13 inch (79.4 mm) Diameter of Cable Entrance, 8.31 inch (211.1 mm) Length
Temperature Rating
-40 To 65 degrees C
Type
Insulated Cap

Manufacturer Information

Brand
Elastimold

General Product Info

12-Digit UPC
783786635511
GTiN
00783786635511
Product UPC
78378663551
Application

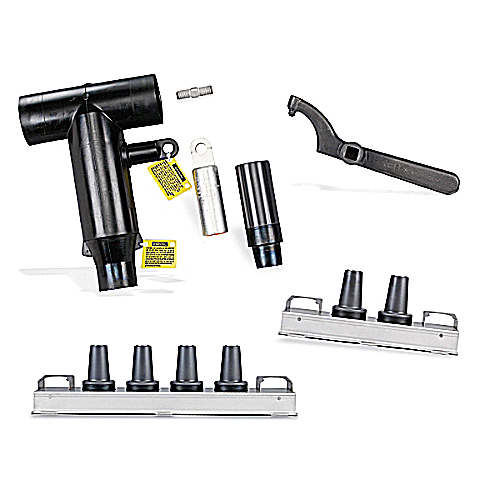

  • 600 Series deadbreak elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits.
Notes
  • Available without the stud by adding \"N\" to the catalog number.
  • Available with the stud factory-assembled by adding \"SP\" to the catalog number. 675ETP, K675ETP and 775ETP are available as -SP only. The stud is not field removable.
