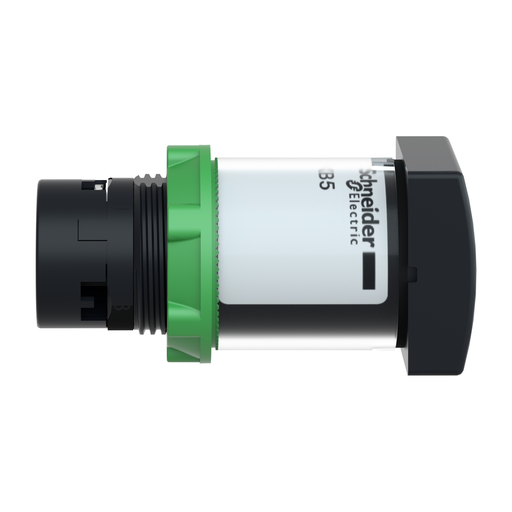

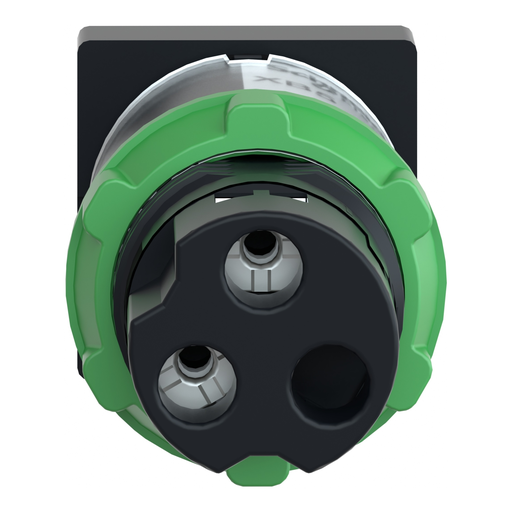

Square D XB5DSB 24 VAC/VDC Push Button Hour Counter

Manufacturer: Square-D / Schneider | Catalog # XB5DSB | Echo Electric Part # 257712
$565.61/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

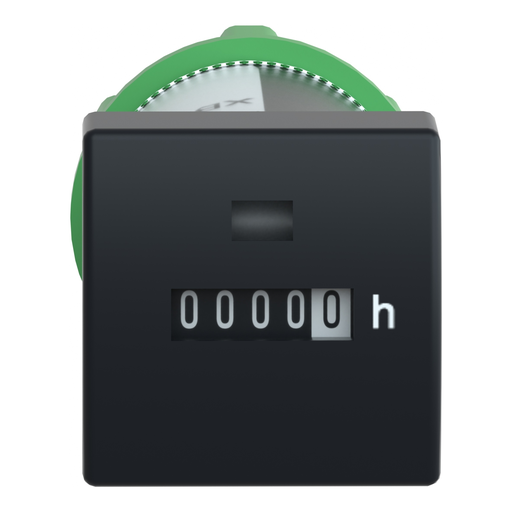

This Harmony XB5, hour counter has 5 display digits and is supplied with 12V to 24V AC/DC. This hour counter provides a visual indicator on the number of hours operated of your installation. It is easily installed into standard 22mm diameter cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Technical Information

Action
WITHOUT
Bezel Material
Plastic
Current
7-15 mA
Enclosure
NEMA 13-NEMA 4X
Mounting Type
Flush-Mounted
Net Weight
0.045 kg
Operating Temperature
-25-70 Adegrees C
Size
2.36 in
Standard
IEC 60947-5-1
Storage Temperature
-40-70 degrees C
Type
Hour counter
Voltage
12...24 Volt +/-10

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY XB5

General Product Info

12-Digit UPC
389110102553
GTiN
03389110102550
Product UPC
78590139405
Weight
0.045 kg

Dimensions

Depth
60 mm
Height
30 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB5AZ905
  • ZBY2101
  • ZBYLEG304001
  • ZBYP2101
Cross Sell Products
  • NSYPLM43G
  • XALK84W3BE
