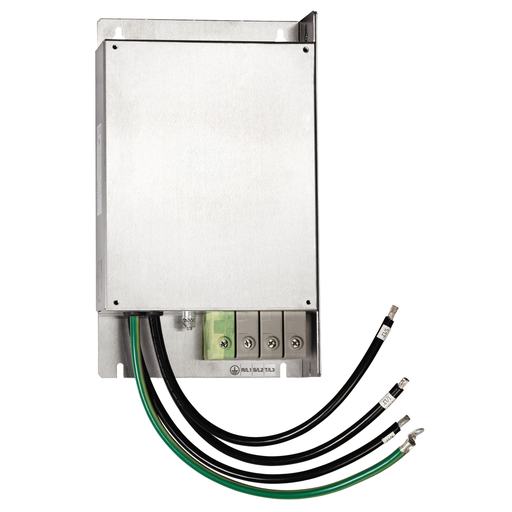

Product image for SQD VW3A4422 EMC input filter, Alti
Email

SQD VW3A4422 EMC input filter, Alti

Manufacturer: Square-D / Schneider | Catalog # VW3A4422 | Echo Electric Part # 267281
$209.04/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and ATV340, Lexium 28 and Lexium 52. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.

Technical Information

Applications
ALTIVAR 32-ALTIVAR MACHINE ATV340-LEXIUM 32-ALTIVAR MACHINE ATV320-LEXIUM 28-LEXIUM 52,LXM28A-ATV32, 380...500 V, 0.37...1.5 KW-LXM32, THREE-PHASE, LINE CURRENT 1.2...8.7 A-VARIABLE SPEED DRIVE ATV320...B 0.37 KW, 380...500 V, THREE PHASE-VARIABLE SPEED DRIVE ATV320...B 0.55 KW, 380...500 V, THREE PHASE-VARIABLE SPEED DRIVE ATV320...B 0.75 KW, 380...500 V, THREE PHASE-VARIABLE SPEED DRIVE ATV320...B 1.1 KW, 380...500 V, THREE PHASE-VARIABLE SPEED DRIVE ATV320...B 1.5 KW, 380...500 V, THREE PHASE-VARIABLE SPEED DRIVE ATV320...B 2.2 KW, 380...500 V, THREE PHASE-VARIABLE SPEED DRIVE ATV320...B 3 KW, 380...500 V, THREE PHASE-VARIABLE SPEED DRIVE ATV320...B 4 KW, 380...500 V, THREE PHASE-VARIABLE SPEED DRIVE ATV340 0.75 KW, 380...480 V-VARIABLE SPEED DRIVE ATV340 1.5 KW, 380...480 V,RADIO INTERFERENCE INPUT FILTER
Line Rated Current
15 A
Net Weight
0.9 kg
Number of Phases
3 Phase
Type
L Type, Class 4

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ALTIVAR-LEXIUM

General Product Info

12-Digit UPC
785901302384
GTiN
03606480166891
Product UPC
78590130238
Weight
0.9 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Thailand
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LXM32AU60N4
