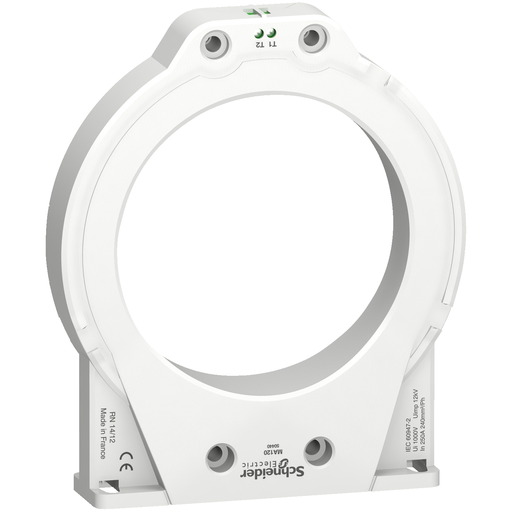

Square D 50440 Closed Toroid A Type

Manufacturer: Square-D / Schneider | Catalog # 50440 | Echo Electric Part # 269125
$950.43/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 250A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 120 millimeters and the weight is 0.450kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 60 millimeters. The maximum cross section per phase (R, S, T, N) is 240mm² for a copper conductor.

Technical Information

Amperage
250 Amp
Applications
Equipment monitoring and control
Enclosure
IP30
Interrupt Rating
85 kAIC
Mounting Type
Clip-on DIN Rail),Fixed Cables),Fixed Plain Backplate),Fixed Profiled Sheet Metal),Fixed Slotted Backplate)
Net Weight
0.59 kg
Operating Temperature
-35.0 degrees C70.0 degrees C
Range
Vigirex
Standard
IEC 60947-2
Storage Temperature
-55-85 degrees C
TC Connection
TUNNEL TYPE TERMINALS
Type
A type closed toroid;Earth leakage current sensor
Voltage
1k Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
MA120

General Product Info

12-Digit UPC
303430504408
Environmental Conditions
EXPOSURE TO DAMP HEAT NOT IN SERVICE 25...55 A?C, RH 95 ) 28 CYCLES IEC 60068-2-30-SALT MISTKB/2 IEC 60068-2-52-EXPOSURE TO DAMP HEAT IN SERVICECATEGORY C2 48 HOURS IEC 60068-2-56
GTiN
03303430504405
Product UPC
30343050440
Weight
0.59 kg

Dimensions

Chain Cable Diameter
240-240 mm
Depth
44 mm
Diameter
120 mm
Height
164 mm
Length
44 mm
Warranty Length
18 mth
Width
190 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
