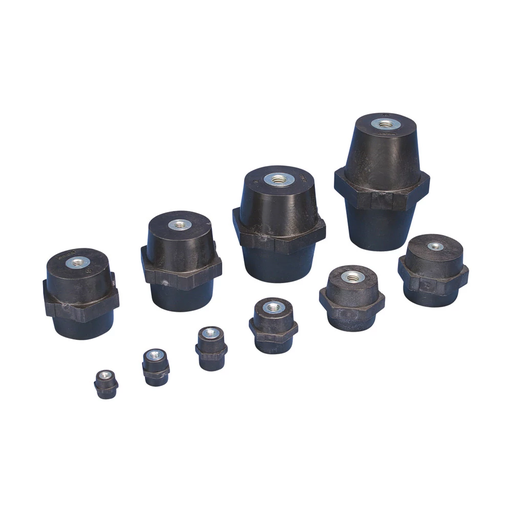

Erico 548430 Low Voltage Insulators, Metric Thread, 0.984", 19 mm Hex Width, M6 Thread

Manufacturer: Erico, Inc | Catalog # 548430 | Echo Electric Part # 270360
$3.21/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Low voltage electrical insulator. ISOTP25M6, Metric Thread, 0.984" (25 mm), 19 mm Hex Width, M6 Thread.

Technical Information

Applications
Power Connections; Grounding and Bonding
Material
Steel
Thread Size
M6
Type
Low Voltage Insulators

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856875444
Finish
Electro Galvanized
GTiN
00782856875444
Product UPC
78285687544
Weight
0.01 kg
Certifications
  • IEC 61439-1 IEC 61439-1 (2017)
  • CSA-Comp CSA C22.2 No. 29
  • cUR CSA C22.2 No. 29, CSA C22.2 No. 244
  • UR ANSI/UL 67, ANSI/UL 891
  • CE, ERIFLEX ISOTP EN 61439
Features
  • Halogen free
  • High resistance to leakage current
  • Great stability of electrical and mechanical parameters
  • Fiberglass reinforced
  • UL® Recognized in E125470 and evaluated for dielectric withstand rating of 1,500 VAC/DC
  • RoHS compliant
