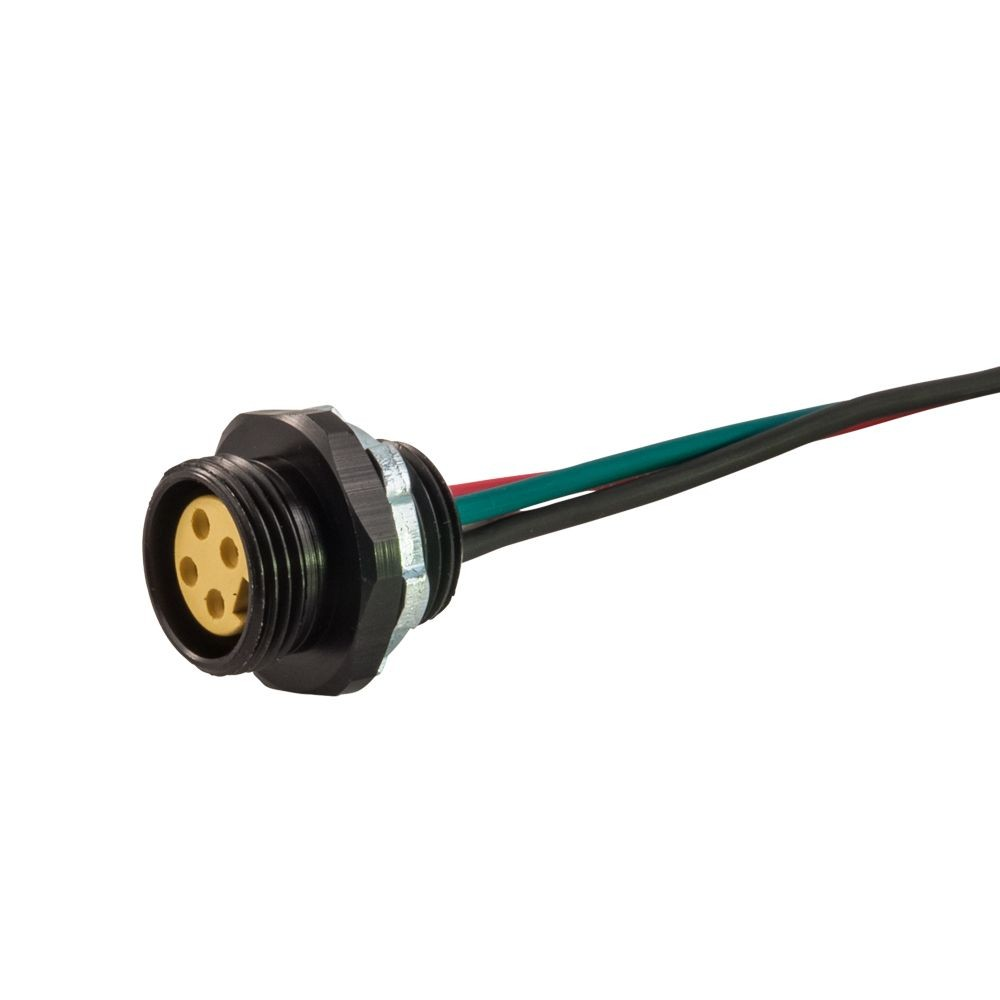

Product image for RMK 103Q0010M Rcpt Mini A Size Fema
Image thumbnail 0
Image thumbnail 1
Email

RMK 103Q0010M Rcpt Mini A Size Fema

Manufacturer: Remke Industries | Catalog # 103Q0010M | Echo Electric Part # 285284
$45.35/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Closes 5:00pm CT
32 available

For Delivery

Not in local stock *
Check another branch
Mini-Link Receptacle, Female, 3 pole, 1'

Technical Information

Amperage
13 Amp
Applications
Automotive assembly, conveyor sensors, pick & place robots & maerial handling equipment
Conductor Material
Copper
Conductor Size
16 AWG
Contact Material
Brass, Gold Plated Over Nickel,Polyvinyl Chloride
Gauge
16 AWG
IP Rating
IP67
Material
PVC
Max Temperature
105 degrees C
Min Operating Temperature
-20 degrees C
Min Temperature
-20 degrees C
NEMA Size
6P
Number of Conductors
3
Number of Poles
3 Pole
Operating Temperature
105 degrees C
Type
Mini-Link, Receptacle 12" Leads, 2 to 6 Pole, Female
Voltage
600,600

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Remke Industries
Sub Brand
Tuff-Link

General Product Info

12-Digit UPC
785411429427
Color
Ivory
GTiN
00785411429427
Jacket Material
PVC
Product UPC
78541142942
Shell Material
Machined Aluminum

Dimensions

Height
1.07 Inch
Length
1.07 Inch
Warranty Length
1 yr
Width
1.225 in

Certifications and Compliance

Country of Origin
USA
Features
  • Mini-Link connectors are available in 2-12 pole configurations, straight and 90 degree, male & female styles with these features:
  • Attachable Mini-Link Connectors provide essential flexibility for wiring in the field.  In applications where it is difficult to design or plan wiring due to changing conditions, using Mini-Link cables with attachable molded connectors that can be wired on site is the answer.
  • PVC(plastic) for general industrial applications
  • NEMA 6P & IP 68 protection
  • The Remke family of Mini-Link Molded Connectors & Cordsets are ideally suited for applications where flexibility and resistance to stress, abuse or harsh environments is important.  These connectors are available in:
  • In the Tuff Link family of molded connectors & cordsets, customization means you can mix and match from our extensive selection of special materials, special hardware, special wiring, custom packaging, kitting and private labeling to develop the Molded Connector or Cordset that meets your specific needs.
  • Rubber for use in applications where flexibility & resistance to abusive environments thru a broad temperature range is important
  • Nickel coated then gold-plated contacts for enhanced corrosion resistance &  conductivity
  • Silicone for applications with extreme temperature changes or flexibility & severe environments where absolute reliability is required
  • Pins & contacts crimped onto wires assuring secure terminations
  • Precision machined contacts for highly accurate tolerances
  • Connectors that meet or exceed UL, CSA, NEMA, SAE, IEC and automotive specifications
  • Heavy-duty SOOW, SJOOW or STOW cable options
  • Integral strain relief and plated coupling nuts
Typical Applications Using Mini-Link Connectors
  • Sensors on Conveyors
  • Automated Assembly Equipment
  • Packaging Equipment
  • Robotics Equipment
  • Bus Systems
  • Transportation Equipment
Products Which Typically Use Mini-Link Connectors
  • 12 and 18mm Proximity Sensors
  • Limit Switches
  • Photoelectric Switches
  • Solenoids & Hydraulic Valves
  • Foot Operated Switches
  • Power Tools
  • Cranes, Hoists and their Controls
For Coupling Nuts & Receptacle Bodies You Can Choose From These Five Types Of Special Materials
  • Anodized Aluminum - for most industrial applications
  • Stainless Steel durability in severely corrosive environments
  • Non-Metallic - best suited for damp locations
  • Nickel-Plated Brass - corrosion resistant & conforms to EMC requirements
  • Peek™ Polymers - ideal for applications with high temperatures or high pressure water.
For Overmolding And Cable Include The Following
  • Rubber for use in applications with extremes of temperatures, hot substrates like weld spatter, or where solvents, oil and coolants exist
  • Silicone that is best used in high temperatures
  • PVC which is best for general assembly applications
  • PUR for excellent abrasion resistance for high abuse areas
  • TPE that offers excellent chemical and abrasion resistance
Special Hardware
  • You can choose from a variety of custom shells, couplers or adapters.
  • Remke offers five types of custom shells; flange mount, panel mount, back panel mount, P.C. type and SAE or metric threading.
  • For couplers you can select either internally threaded, externally threaded or the housing protective type where the coupler is threaded but covers the entire sensor for protection.
Special Wiring
  • For custom products or specials, Remke offers several types of special wiring including: combination wiring where one side is parallel and the other is wired in series; interlocking circuit wiring; parallel wiring; series wiring; and wiring that is specified by a customer.
