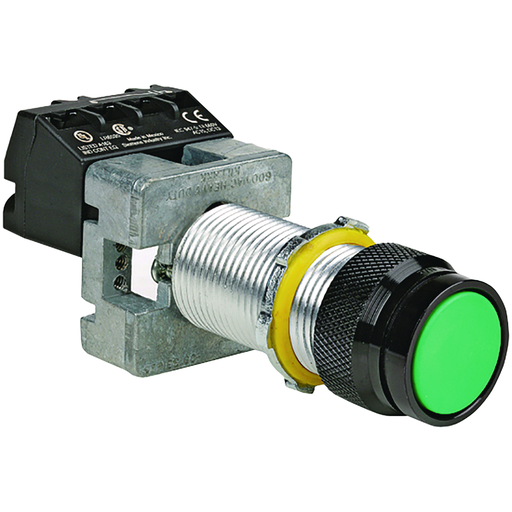

Product image for Killark GO1-GX1B N34 G Series - Aluminum Long Momentary Contact Single Push Button Operator -Green Button With "Start"/"Stop" Nameplate - 1NO Contact Rating
Email

Killark GO1-GX1B N34 G Series - Aluminum Long Momentary Contact Single Push Button Operator -Green Button With "Start"/"Stop" Nameplate - 1NO Contact Rating

Manufacturer: Killark | Catalog # GO1-GX1B-N34 | Echo Electric Part # 291313
$312.39/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.

Technical Information

Action
SPST
Actuator
Momentary Push Button
Amperage
10 Amp
Applications
Designed for Use in Hazardous Locations when Installed in Suitable Enclosures
Contact Configuration
1 NO
Contact Rating
60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
Enclosure Type
NEMA 3, 4, 4X
Frequency
50/60 Hz
NEMA Size
3,4,4X
Number of Poles
1 Pole
Size
1-1/4" H x 1-1/4" W x 4-5/16" L
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Type
1-Pole, Long Style, Single
Voltage
600 VAC

Manufacturer Information

Brand
Killark Electric
Sub Brand
Killark

General Product Info

12-Digit UPC
783936221403
Color
Green
GTiN
00783936221403
Product Series
GO
Product UPC
78393622140
Used With
B7E, EXB, XJB, DB, SWB and GCS Series Boxes and B7, Y7 Starter Enclosures

Dimensions

Height
1-3/4 Inch
Length
2-1/4 Inch
Width
6.625 in

Certifications and Compliance

Country of Origin
USA
Features
  • Operators are all aluminum except for certain movable parts which are stainless steel.
  • All other parts such as screws are either stainless steel or plated steel.
  • Threaded bodies are all 3/4-14 NPSM thread.
  • Control stations can be grouped into a single assembly thus reducing installation time and cost.
  • Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
