KLEI 69346 LEVEL PLUMBER KIT

Manufacturer: Klein Tool | Catalog # 69346 | Echo Electric Part # 323834
$13.07/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 13 to 21 days
Product Spec Sheet

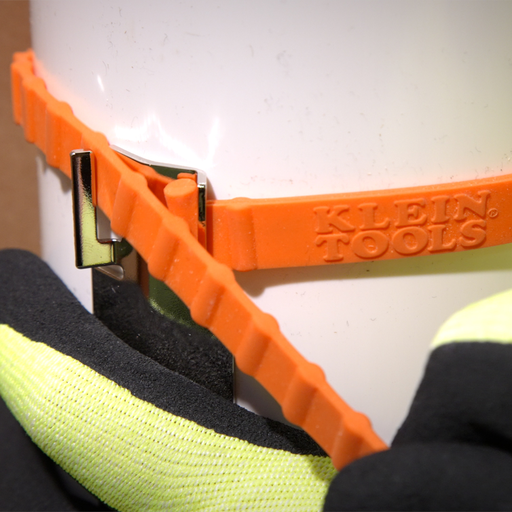

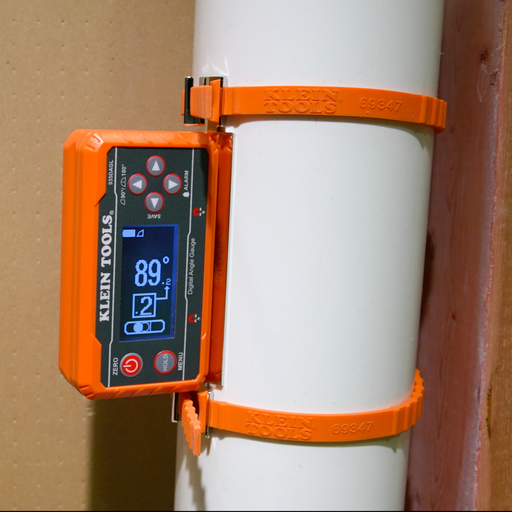

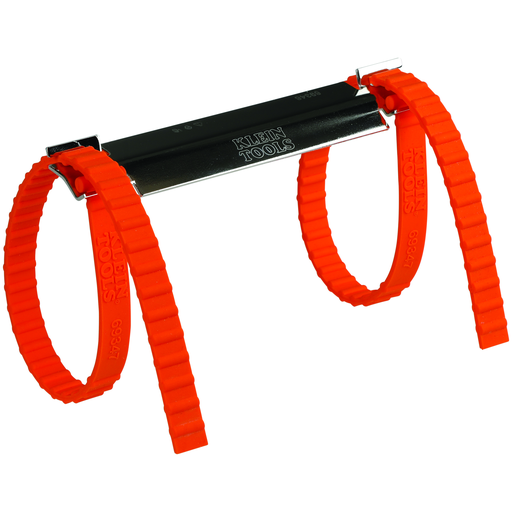

The Klein Tools' 69346 Plumber's Kit is designed to bring the benefits of the magnetic attachment of digital angle gauges to non-magnetic pipes, conduits or other objects. It consists of a metal plate and silicone straps which may be strapped to the non-magnetic object. When attached it presents a ferromagnetic surface aligned with the non-magnetic pipe to which the Digital Level with Programmable Angles (Cat. No. 935DAGL) or the Digital Angle Gauge and Level (Cat. No. 935DAG) may be attached. This facilitates hands-free operation of the angle gauge when working to align non-magnetic pipes or conduits. Two adjustable silicone straps wrap around non-magnetic pipes from 1- to 6-Inch outer diameter and can stretch to fit circumferences up to 18-Inch. Once the digital angle gauge or level has been magnetically mounted to plate setting pitches or measuring angles can be efficiently achieved.

Technical Information

Material
Silicone/Steel

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644693465
Product UPC
09264469346
Used With
Digital Level
Weight
0.200 lb

Dimensions

Depth
9 Inch
Height
0.4 Inch
Length
15.1 Inch
Overall Length
15.1 in
Width
1.3 in

Certifications and Compliance

Country of Origin
China
Features
  • Plumber's Kit straps to brass, copper, PVC, and other non-magnetic pipes and conduits to present a magnetic surface to which Digital Angle Gauges and Levels may be mounted
  • Two flexible, adjustable length straps connect the metal plate to pipes, conduit, or other objects
  • Fits common PVC pipe sizes from 1- to 6-Inch outer diameter and can stretch to fit circumferences up to 18-Inch
  • Attach magnetic side of Digital Angle Gauges and Levels to the metal plate to use the gauge in a hands-free fashion to easily set and measure angles
  • Metal plate holds Digital Angle Gauges and Levels in place while the desired angle, pitch, or tilt is set or measured
  • Secure the Plumber Kit in place by adjusting the silicone straps to the required length
  • Use with Klein Tools Digital Level with Programmable Angles (Cat. No. 935DAGL) or the Digital Angle Gauge and Level (Cat. No. 935DAG)
  • Replaceable Straps for Plumber's Kit (Cat. No. 69347) sold separately
  • Silicone Straps
  • Fits common PVC pipe sizes from 1 to 6-Inch outer diameter and can stretch to fit circumferences up to 18-Inch
Warnings
  • Read, understand, and follow instructions to ensure safe operation
  • Always wear approved eye protection
