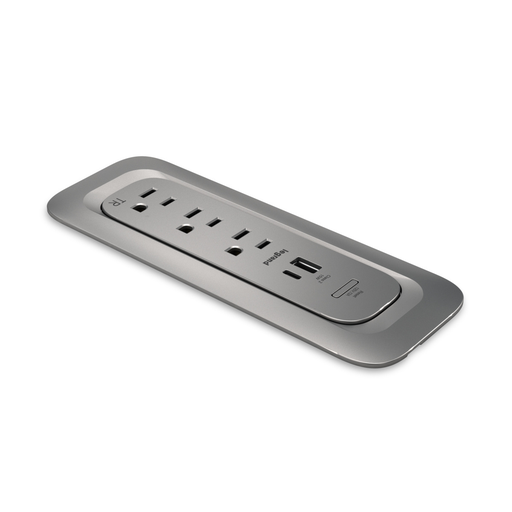

WM MDCF3-MG SECONDARY INTEGRATED, 3

Manufacturer: The Wiremold Co | Catalog # MDCF3-MG | Echo Electric Part # 369176
$229.84/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual CAD Drawing #1
People move. Equipment moves. Furniture moves. Power must be easy to change and relocate. The industry’s first code compliant modular power system is designed to give you the freedom to reconfigure power and charging as you need. No matter how your project unfolds, the ModPower System provides convenient power access that meets code.

Technical Information

Amperage
12 Amp
Applications
Commercial
Cable Type
12/3 SJT
Cord Length
3.0 in
Cord Type
12/3 SJT
Current
12 Amp
Indoor Outdoor
Indoor
Number of Circuits
1
Plug Type
5-15P
Receptacle Type
Straight Blade
Type
Modular Power System
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776195156
Color
Magnesium
GTiN
00786776195156
Product UPC
78677619515

Dimensions

Cable Length
3.0 in
Height
2-5/8 Inch
Length
7-5/8 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
China
Features

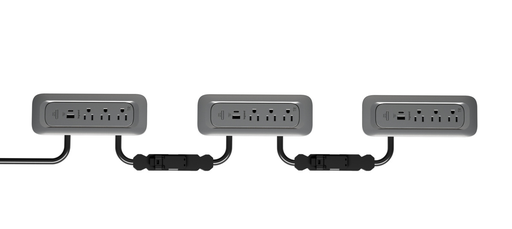

  • Modular code-compliant power listed for use in US and Canada. Connect up to six of our power units together to create a system of power for training spaces, workstations or flexible spaces.
  • Choose in surface or on surface. Pick the option that best fits your space: in surface or on surface. On surface units can be mounted under or above table surfaces. In surface units include a bezel that hides the mounting screws for a cleaner look.
  • On surface units can be mounted using clamp (for a damage-free install) or can be installed using wood screws. Installation for in surface units is a snap: Simply cut the opening, insert the unit, tighten the clamps, snap on the bezel and plug it in.
  • UL Spill Water Compliant. Passed UL 962A spill water test requirements so it can be used in a horizontal surface, such as a tabletop.
  • FCC Compliance. This device complies with part 15 of the FCC Rules.
  • You will notice that our units (primary, middle and end) all utilize a circuit breaker. UL962A Supplement SD requires that all furniture power distribution units for portable (moveable) workspace tables contain supplementary overcurrent protection.
  • Tamper resistant receptacles. Models have three tamper resistant receptacles to keep little fingers away from danger.
  • Maximum number of interconnected units in a system vary depending on region. Maximum of 6 units in a system allowed in USA. Maximum of 4 units in a system allowed in Canada.
Certifications
  • UL Listed
  • RoHS Compliant
  • UL Standard
  • CSA Listed
  • FCC Compliant
