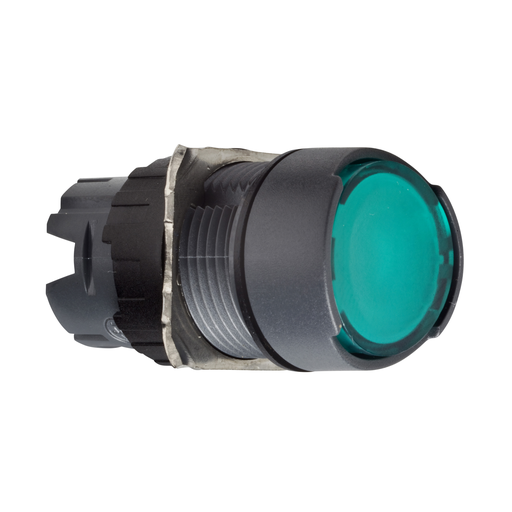

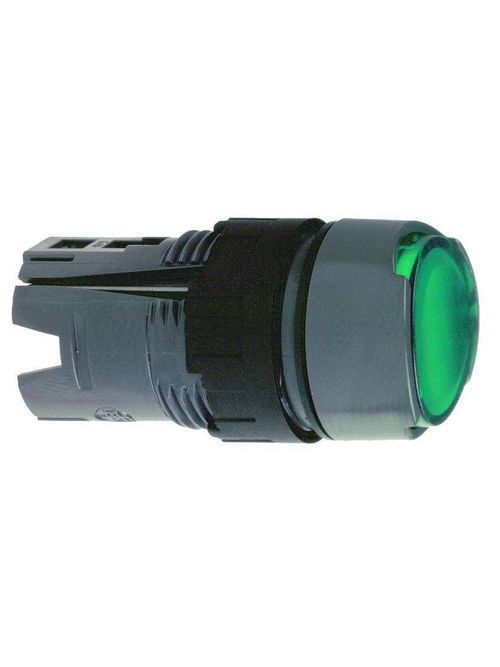

Product image for Square D ZB6AF3 16 mm Green Round Flush Illuminated Push Button Operator
Image thumbnail 0
Image thumbnail 1
Email

Square D ZB6AF3 16 mm Green Round Flush Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB6AF3 | Echo Electric Part # 393312
$15.58/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony ZB6AF3 is a green flush illuminated push button head, latching for integral LED. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Technical Information

Action
LATCHING
Actuator
GREEN FLUSH, UNMARKED,LATCHING
Applications
Integral LED
Bezel Material
Plastic
Enclosure
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Indicator
GREEN
Net Weight
0.016 kg
Operating Temperature
-25-70 Adegrees C
Size
0.63 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-5,JIS C 852,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB6

General Product Info

12-Digit UPC
785901359760
GTiN
03389110776164
Weight
0.04 lb

Dimensions

Height
18 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
Spain
