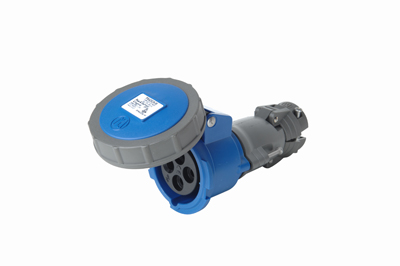

Product image for Pass & Seymour PS520C7-W Pin & Sleeve Connector, 4pole 5wire, 20A 3Y 277/480V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour PS520C7-W Pin & Sleeve Connector, 4pole 5wire, 20A 3Y 277/480V

Manufacturer: Pass & Seymour / Legrand | Catalog # PS520C7-W | Echo Electric Part # 399663
$444.19/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual
Four pole, Five wire, Pin and Sleeve Connector. 20 amp, 3Y, 277/480 volt.

Technical Information

Amperage
20 Amp
Applications
Industrial
Material
Nylon
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
7.31x4.37x4
Type
Pin & Sleeve North American Watertight Connector
Voltage
277 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007520064
Color
Gray
GTiN
00785007520064
Product UPC
78500752006
UNSPSC
39121403

Dimensions

Height
3-1/2 Inch
Length
6.7 Inch
Width
3.4 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS
Country of Origin
USA
Features
  • Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
  • Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
  • Nylon construction for highimpact and corrosion resistance.
  • Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
  • Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
  • Natural-rubber grommets provide watertight protection at cable entry.
  • Combination-head screws for added convenience and quick installation.
  • Revolutionary, hinged cord grip for durable performance and ease of installation.
  • Cover with integral neoprene gasket provides watertight seal.
Certifications
  • cULus Listed
