Caddy 1150150EG Standard Duty Loop Hanger, 1-1/2" Pipe, 1.9", 3/8" Rod

Manufacturer: Erico, Inc | Catalog # 1150150EG | Echo Electric Part # 428779
$225.12/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
893 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page
Pipe hanger with threaded nut and smooth edges; for use with non-insulated metal and plastic pipe. Pregalvanized, 48.3 mm, 3/8" Rod.

Technical Information

Applications
Fire Sprinkler; HVAC, Plumbing and Refrigeration
Material
Steel
Pipe Size
1-1/2 in
Standard
CUL,FM,UL
Type
115 Standard Duty Loop Hanger

Packaging

Standard Packaging Qty
100 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856417293
Finish
Pregalvanized
GTiN
00782856417293
Product UPC
78285641729
Weight
0.05 kg

Dimensions

Outer Diameter
1.9 in

Certifications and Compliance

Certifications
CULus,FM
Features
  • Flared edges help prevent any sharp surfaces from coming into contact with the pipe (1/2\" to 4\" sizes)
  • Retained insert nut helps ensure the loop hanger and insert nut stay together

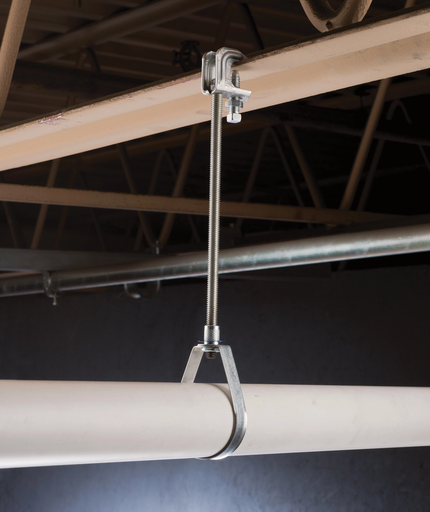

  • Recommended for the suspension of stationary non-insulated pipe lines
  • Manufactured to use the minimum rod size permitted by NFPA® for fire sprinkler piping
  • Conforms with Federal Specification WW-H-171 (Type 10), Manufacturers Standardization Society (MSS) SP-58 (Type 10)
Certifications
  • UL ANSI/UL 203
  • FM Approved, Pipe Hanger Components FM 1951, 1952, 1953 (December 2016)
  • cUL ULC/ORD-C203
