3M - 3M 7100166926 3M™ Scotchlok™ IDC C
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007148616
Catalog Number - 7100166926
Color - Red
Conductor Size - 22-16 AWG
Country of Origin - USA
Packaging
1 ea
EAN
10054007148613
Part #
277915
Catalog #
7100166926
Commercial reference
7100166926
12-Digit UPC:
054007148616
Catalog Number:
7100166926
Color:
Red
Conductor Size:
22-16 AWG
Country of Origin:
USA
ERP_productname:
MMM 558-POUCH SELF-STRIP TAP CONN
Family Brand Name:
Scotchlok
Material:
Polypropylene
Product Type:
Run & Tap
Sub Brand:
Scotchlok
Type:
Insulation Displacement
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_193570409

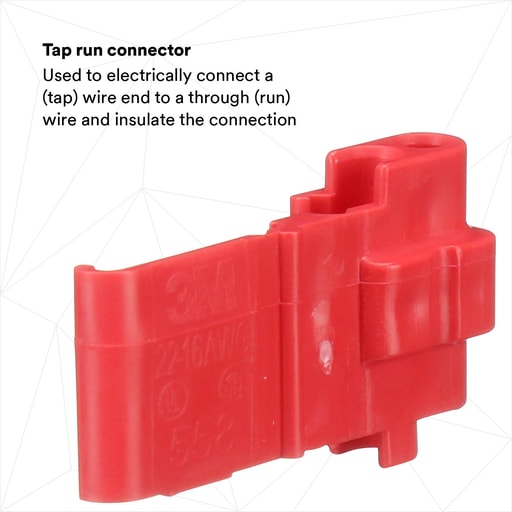

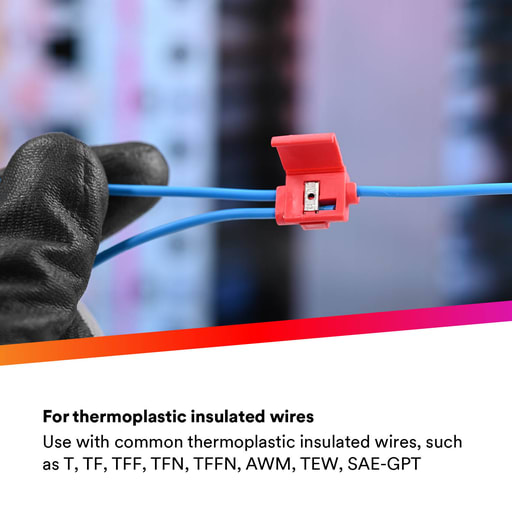

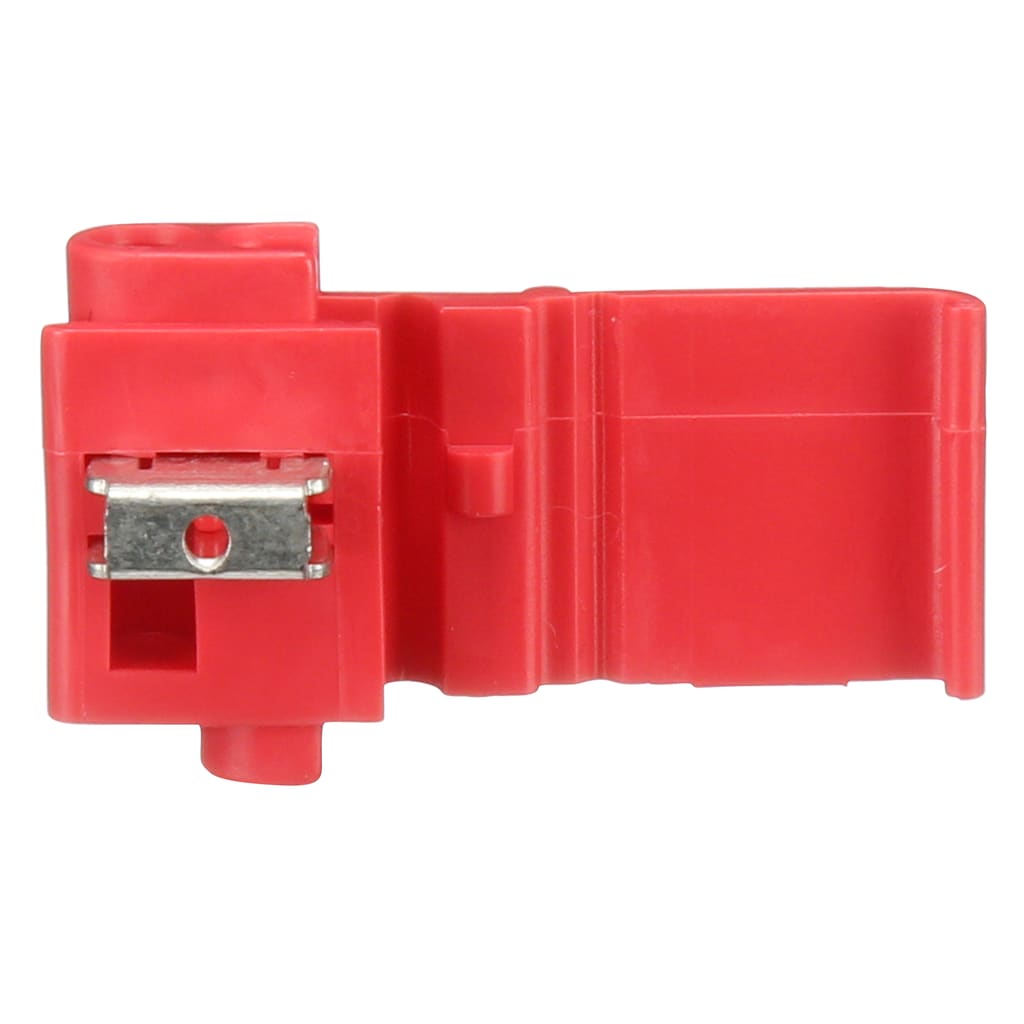

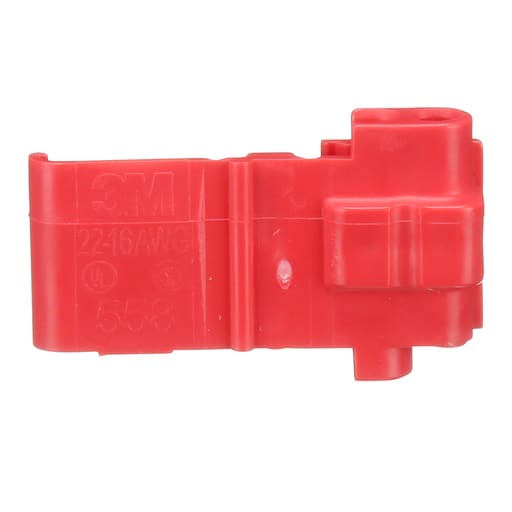

3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping. Features: Red, polypropylene-insulated connector. Tin-plated brass element construction for conductivity.; Suitable for general purpose electrical connections for automotive, boat, van or trailer wiring; Accommodates 22 to 16 AWG solid/stranded or 14 AWG stranded copper; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant; Operating temperature 221F (105C); 600 volts maximum, building wire; 1000 volts maximum, signs, fixtures and luminaires
