3M - 3M 7100167058 3M™ Scotchlok™ IDC C
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007148876
Applications - For Tape and Parallel Splicing
Catalog Number - 7100167058
Color - Brown
Conductor Size - 18-14 AWG, 12-10 AWG
Packaging
100 ea
EAN
10054007148873
Part #
166743
Catalog #
7100167058
Commercial reference
7100167058
12-Digit UPC:
054007148876
Applications:
For Tape and Parallel Splicing
Catalog Number:
7100167058
Color:
Brown
Conductor Size:
18-14 AWG, 12-10 AWG
Country of Origin:
USA
ERP_productname:
MMM 567BOXED TAP CONNECTOR
Family Brand Name:
3M
Material:
Polypropylene
Product Type:
Connector
Sub Brand:
Scotchlok™
Tc Connection:
Run, Tap
Type:
Insulation Displacement
Voltage:
600 Volt
Wire Size:
18-14 AWG (Tap)/12-10 AWG (Run)
SoneparProductId:
SKU_US_193575506

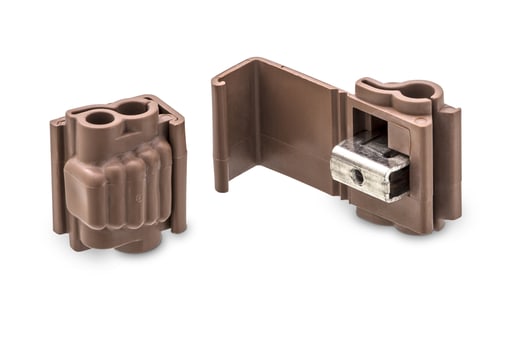

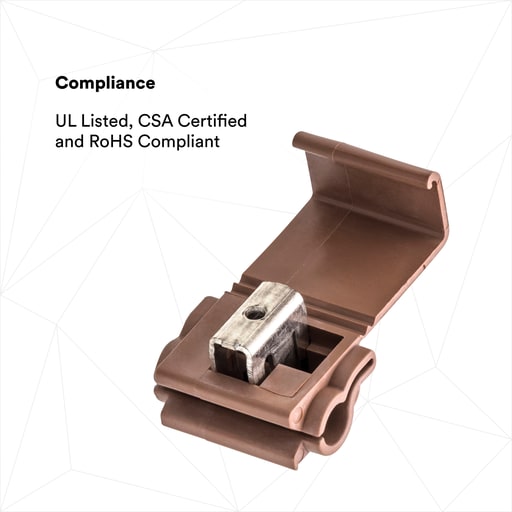

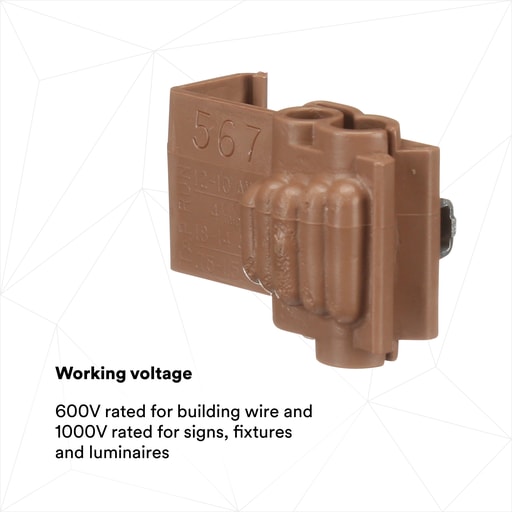

3M™ Scotchlok™ Insulation Displacement Connector 567 electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping. Features: VERSATILE USES: Used for general purpose electrical connections on an auto, boat, van or trailer; WORKING VOLTAGE: 600V rated for building wire and 1000V rated for signs, fixtures and luminaires; WIRE SIZES: Accommodates solid/stranded wires (Tap) 18-14 AWG & (Run) 12-10 AWG; HEAT RESISTANT: Connector withstands temperatures of 221 ±F (105 ±C); COMPLIANCE: UL Listed, CSA Certified and RoHS Compliant; STABILITY: 5-year shelf life (from date of manufacture)
