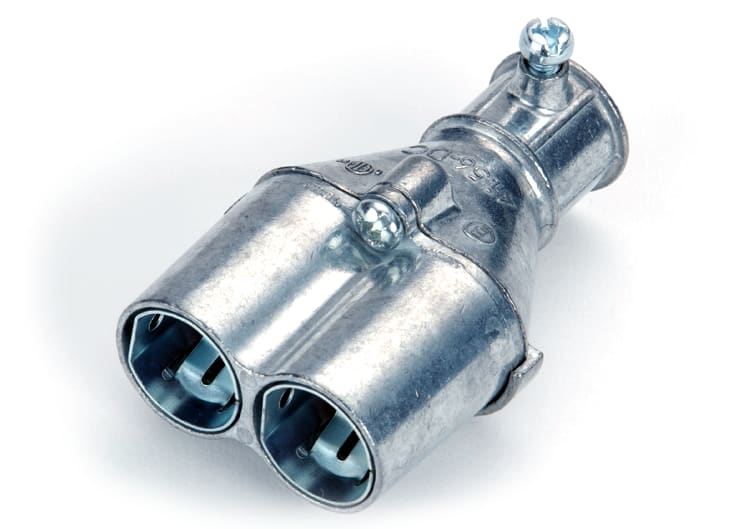

Bridgeport Fittings - Bridgeport 4156-DC 1/2" Transition Coupling, EMT to Duplex AC/MC, Die Cast
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781747941565
Applications - The 4156-DC is used to securely join 1/2" EMT to two 14/2 to 10/3 (.43" to .61" Diameter) AC/MC/MCI-A/HCF/HCFMCI-A or 3/8" flexible metal conduit. These fittings provide a huge labor savings, compared to the traditional junction box or fitting assembly installation. When using AC/MC/FMC cable simply remove the armor and expose the conductors to the desired length needed to reach the device box or enclosure. The inspection holes will provide a visual end stop for the cable or flex conduit. The use of anti short bushings is recommended. Tighten the steel screws for the 1/2" EMT conduit. Patented.
Catalog Number - 4156-DC
ERP_productname - BRID 4156-DC 1/2" X2 TRANS EMT/CABLE CPLG
Family Brand Name - Bridgeport Fittings, LLC.
Packaging
1 ea
EAN
00781747941565
Part #
150234
Catalog #
4156-DC
Commercial reference
4156-DC
12-Digit UPC:
781747941565
Applications:
The 4156-DC is used to securely join 1/2" EMT to two 14/2 to 10/3 (.43" to .61" Diameter) AC/MC/MCI-A/HCF/HCFMCI-A or 3/8" flexible metal conduit. These fittings provide a huge labor savings, compared to the traditional junction box or fitting assembly installation. When using AC/MC/FMC cable simply remove the armor and expose the conductors to the desired length needed to reach the device box or enclosure. The inspection holes will provide a visual end stop for the cable or flex conduit. The use of anti short bushings is recommended. Tighten the steel screws for the 1/2" EMT conduit. Patented.
Catalog Number:
4156-DC
ERP_productname:
BRID 4156-DC 1/2" X2 TRANS EMT/CABLE CPLG
Family Brand Name:
Bridgeport Fittings, LLC.
Material:
Zinc Die Cast
Trade Size:
1/2 Inch
Type:
Coupling
SoneparProductId:
SKU_US_30265050
