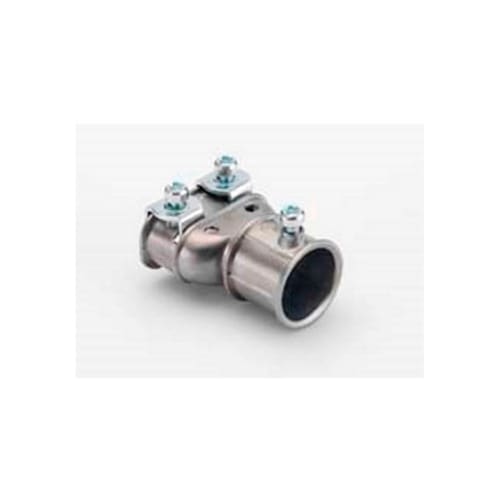

Bridgeport Fittings - Bridgeport 4157-DC 3/4" to 3/8" Transition Coupling, EMT to Duplex AC/MC, Die Cast

12-Digit UPC:

781747941572

Applications:

Set Screw type transitional fitting ideal for commercial and institutional facilities. The 4157-DC is used to securely join EMT to two armored or metal clad cables and 3/8. flexible metal conduit. New and Improved: Now features a tapered body and a rivet to separate cables during installation. A labor savings, compared to the traditional junction box or fitting assembly installation. When using AC/MC/FMC cable simply remove the armor and expose the conductors to the desired length needed to reach the device box or enclosure. The inspection holes will provide a visual end stop for the cable or flex conduit. The use of anti short bushings is recommended. Tighten the steel strap screws between the armor convolutions, and for the 3/4" EMT conduit. Patented.

Catalog Number:

4157-DC

ERP_productname:

BRID 4157-DC 3/4"-3/8" TRANSITION COUPLING

Family Brand Name:

Bridgeport Fittings, LLC.

Material:

Zinc Die Cast

Trade Size:

3/4 Inch

Type:

Coupling

SoneparProductId:

SKU_US_25501575
