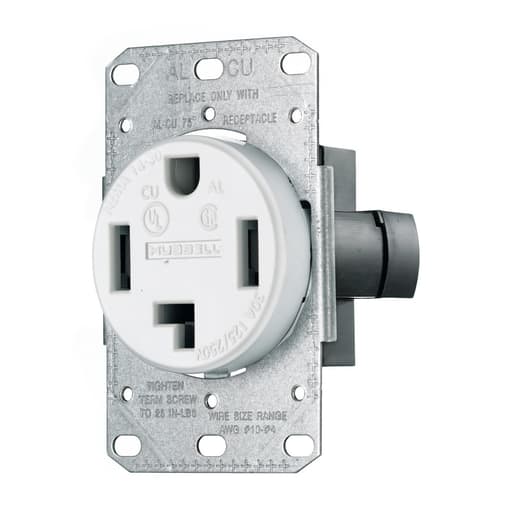

Hubbell Wiring Device - Hubbell RR430FW 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA 14-30R White Range and Dryer Power Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 883778100734
Amperage - 30 Amp
Applications - Residential Range and Dryer Devices
Catalog Number - RR430FW
Color - White
Packaging
1 ea
EAN
00883778100734
Part #
119933
Catalog #
RR430FW
Commercial reference
RR430FW
12-Digit UPC:
883778100734
Amperage:
30 Amp
Applications:
Residential Range and Dryer Devices
Catalog Number:
RR430FW
Color:
White
Conductor Size:
10 AWG
Country of Origin:
China
Current:
30 Amp
ERP_productname:
HUB RR430FW RECPT, SB, 30A 125/250V, 3P4W, FLSH, WH
Family Brand Name:
Hubbell Incorporated
Grade:
Residential
Heights:
2-1/2 Inch
Length:
4 Inch
Material:
Thermoplastic
Mounting Type:
Screw, Flush
NEMA:
14-30R
Number of Phases:
1 Phase
Number of Poles:
3 Pole
Number of Wires:
4 Wire
Size:
Standard Sized
Sub Brand:
Trade-Select™
Tc Connection:
Pressure Screw Terminals
Type:
Non-Reversing
Voltage:
125/250 Volt
Wattage:
7500 Watt
Widths:
2.410 in
Wire Size:
10 AWG
