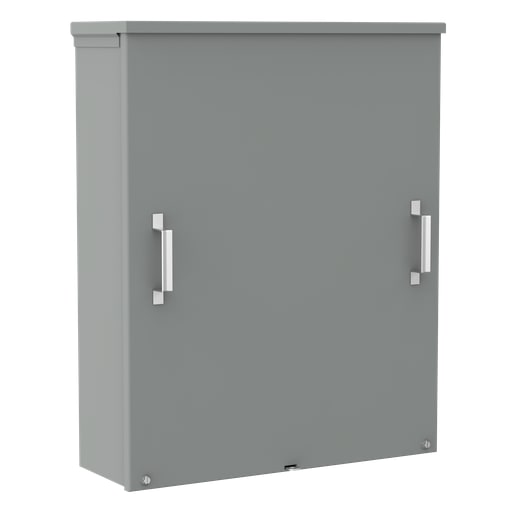

nVent Hoffman - Hoffman A36R3612 36" x 36" x 12" Enclosure, Type-3R w/ Screw Cover, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510434403
Applications - Power Distribution
Catalog Number - A36R3612
Color - Gray
Depths - 12 Inch
Packaging
1 ea
EAN
00783510434403
Part #
115048
Catalog #
A36R3612
Commercial reference
A36R3612
12-Digit UPC:
783510434403
Applications:
Power Distribution
Catalog Number:
A36R3612
Color:
Gray
Depths:
12 Inch
ERP_productname:
HOFF A36R3612 NEMA 3R MFG ITEM 43440
Enclosure:
3R
Family Brand Name:
nVent Hoffman
Finish:
Galvanized
Heights:
36 Inch
Length:
40 Inch
Material:
Steel
Size:
36.00x36.00x12.00 in
Sub Brand:
Hoffman
Type:
Pull and Junction Boxes
Widths:
36 in
SoneparProductId:
SKU_US_58115316
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water. Features: Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet; Slip-on removable cover fastened with plated steel screws along bottom edge; Handles on larger sizes (see table); Embossed mounting holes on back of enclosure; Knockouts in bottom of 16 and 14 gauge enclosures; Provision for padlocking; No gasketing; Enclosures are finished with paint over plated surfaces; Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
