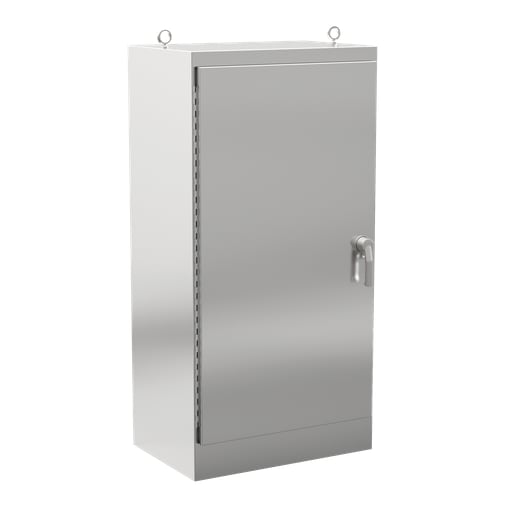

nVent Hoffman - Hoffman A723618SSFSN4 Free-Stand Single and Dual Access with 3-Point Latches, Type 4X, 72.06" x 36.06" x 18.06", SS Type 304

CopyCopy
nVent Hoffman - Hoffman A723618SSFSN4 Free-Stand Single and Dual Access with 3-Point Latches, Type 4X, 72.06" x 36.06" x 18.06", SS Type 304

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510111458

  • Applications - House Systems Incorporating Large Components or Complex Mounting Configurations, Three-point Latching and Sealing Provide Industry-leading Protection from Dust, Dirt, Oil and Water, These Enclosures are used In Machine Tool Applications For Housing Motor Starters, Drives, Contactors and PLCs, as Well as a Wide Variety of Other Electrical and Electronic Equipment

  • Catalog Number - A723618SSFSN4

  • Color - Unpainted

  • Depths - 459 mm

Packaging

  • 1 ea

EAN

00783510111458

Part #

199909

Catalog #

A723618SSFSN4

Commercial reference

A723618SSFSN4

12-Digit UPC:

783510111458

Applications:

House Systems Incorporating Large Components or Complex Mounting Configurations, Three-point Latching and Sealing Provide Industry-leading Protection from Dust, Dirt, Oil and Water, These Enclosures are used In Machine Tool Applications For Housing Motor Starters, Drives, Contactors and PLCs, as Well as a Wide Variety of Other Electrical and Electronic Equipment

Catalog Number:

A723618SSFSN4

Color:

Unpainted

Depths:

459 mm

ERP_productname:

HOFF A723618SSFSN4 ONE-DOOR FS ENCL. TYPE 4X MFG ITEM 11145

Family Brand Name:

nVent Hoffman

Finish:

Brushed

Heights:

1830 mm

Length:

42 Inch

Material:

Stainless Steel

Mounting Type:

Floor

Size:

72.06x36.06x18.06 in

Sub Brand:

Hoffman

Type:

Single Door, Free-Stand

Widths:

916 mm

SoneparProductId:

SKU_US_57970532

Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries. Four styles are available to provide maximum flexibility. Features: Seams continuously welded and ground smooth; no holes or knockouts; Two-door enclosures provided with a removable centerpost for easy panel installation; Heavy-duty lifting eyes are Type 316L stainless steel; Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle; Seemless foam-in-place gasket assures a water-tight and dust-tight seal; Body flange trough collar excludes liquids and contaminants; Heavy-gauge continuous hinges support each door; High-impact thermoplastic data pocket provided with each enclosure; Mounting channels welded horizontally to interior body sides at top, bottom and center; Optional panels and rack mounting angles can be mounted anywhere along channels; Bonding provision on door; grounding stud on body; Accessory mounting channel provided in enclosure top
