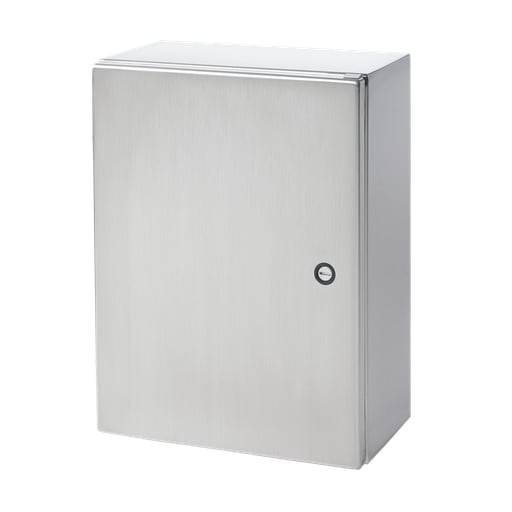

nVent Hoffman - Hoffman CSD362412SS Stainless Steel CONCEPT Single-Door Enclosures, 36" x 24" x 12", SS Type 304

CopyCopy
nVent Hoffman - Hoffman CSD362412SS Stainless Steel CONCEPT Single-Door Enclosures, 36" x 24" x 12", SS Type 304

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510488505

  • Applications - For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water

  • Body Gauge - 16

  • Catalog Number - CSD362412SS

  • Color - Stainless Steel

Packaging

  • 1 ea

EAN

00783510488505

Part #

104980

Catalog #

CSD362412SS

Commercial reference

CSD362412SS

12-Digit UPC:

783510488505

Applications:

For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water

Body Gauge:

16

Catalog Number:

CSD362412SS

Color:

Stainless Steel

Depths:

305 mm

ERP_productname:

HOFF CSD362412SS STAINLESS ENCL. 36.00X24.00X12 MFG ITEM 48850

Enclosure:

3R

Family Brand Name:

nVent Hoffman

Finish:

Powder Coated

Heights:

914 mm

Length:

40-3/4 Inch

Material:

Stainless Steel

Mounting Type:

Wall

Size:

36.00x24.00x12.00 in

Sub Brand:

Concept

Type:

Two Lock, Single Door

Widths:

610 mm

SoneparProductId:

SKU_US_59120070

For indoor or outdoor applications that require corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Features: Minimum-width body flange provides maximum body opening; External formed 90-degree body flange; Panel mounting studs fit optional Concept panels and other accessories; Mounting holes in back of body for direct mounting or for optional external mounting brackets; Type 316 stainless steel hidden hinges promote clean aesthetic appearance; Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins; Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket; Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit; Quarter-turn latches furnished with flush slotted insert; Seamless foam-in-place gasket; Self-grounding latch system with double seal; Bonding provision on door; grounding stud on body; Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
