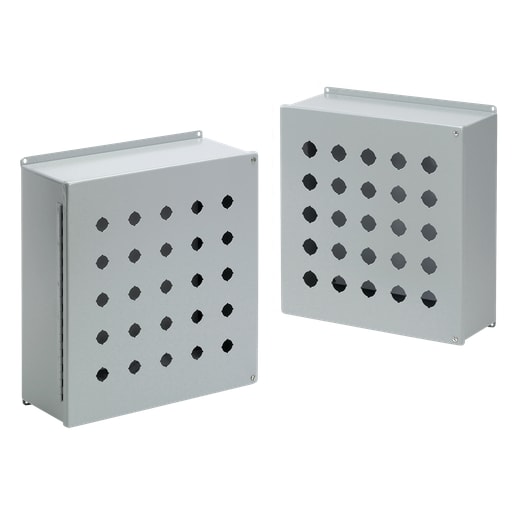

nVent Hoffman - Hoffman E16PBY25 Extra-Large Pushbutton Enclosures, Type 12, 16PB x 30.5mm, Gray, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510588106
Applications - For Push Buttons and Switches
Catalog Number - E16PBY25
Color - Gray
Depths - 6 Inch
Packaging
1 ea
EAN
00783510588106
Part #
205524
Catalog #
E16PBY25
Commercial reference
E16PBY25
12-Digit UPC:
783510588106
Applications:
For Push Buttons and Switches
Catalog Number:
E16PBY25
Color:
Gray
Depths:
6 Inch
ERP_productname:
HOFF E16PBY25 ENCLO MFG ITEM 58810
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
13-1/2 Inch
Length:
16 Inch
Material:
Steel
Number of Holes:
16 Hole
Size:
16PB x 30.5mm
Sub Brand:
Hoffman
Type:
16-Hole, Extra-Large
Widths:
12.5 in
SoneparProductId:
SKU_US_58866007
Extra-Large Pushbutton Enclosures with Panels are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with 2.50-in. (64-mm) center-to-center of pushbutton holes. Features: Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Continuous hinge; Factory stamped 4-way pushbutton holes; Oil-resistant gasket; Removable 14 gauge panel included, supported by weldnuts; Bonding provision on cover; External welded-on mounting brackets for easy installation; 30.5-mm or 22.5-mm size holes
