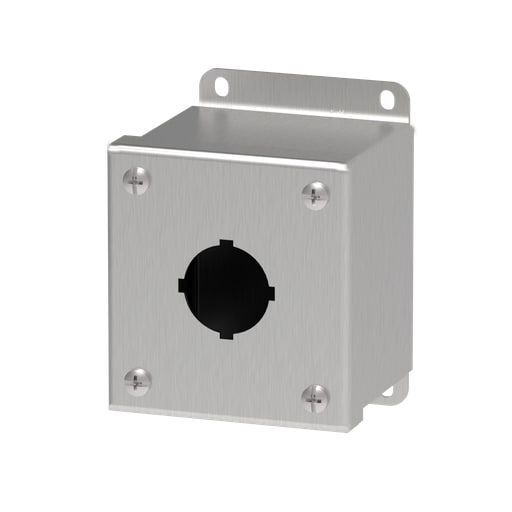

nVent Hoffman - Hoffman E1PBSS 3.50" x 3.25" x 2.75" 1-Hole 30.5mm Pushbutton Enclosure, Type 4X, Stainless Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510596101
Applications - Provide Protection Against Dirt, Dust, Oil and Water
Catalog Number - E1PBSS
Color - Stainless Steel
Depths - 70 mm
Packaging
1 ea
EAN
00783510596101
Part #
205490
Catalog #
E-1PBSS
Commercial reference
E-1PBSS
12-Digit UPC:
783510596101
Applications:
Provide Protection Against Dirt, Dust, Oil and Water
Catalog Number:
E1PBSS
Color:
Stainless Steel
Depths:
70 mm
ERP_productname:
HOFF E-1PBSS 1H NEMA4X SS OT PB ENC MFG ITEM 59610
Family Brand Name:
nVent Hoffman
Finish:
Brushed
Heights:
89 mm
Length:
3.9 Inch
Material:
Stainless Steel
Number of Holes:
1 Hole
Size:
1PB x 30.5mm
Sub Brand:
Hoffman
Type:
1 Hole
Widths:
83 mm
SoneparProductId:
SKU_US_58084890
Pushbutton enclosure, 16 gauge covers, Type 304 stainless steel, 1 number of hole, Seams continuously welded and ground smooth, Oil-resistant gasket, Bonding provision on door, grounding nut on body, 4 way pushbutton holes accept all brands of oil-tight pushbuttons, Punched to house 30.5 mm oiltight pushbuttons, switches and pilot lights, They provide protection against dirt, dust, oil and water. Features: Prepunched 30.5mm or 22.5mm holes; Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Bonding provision on door; grounding nut on body; 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights; Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal; Oil-resistant gasket
