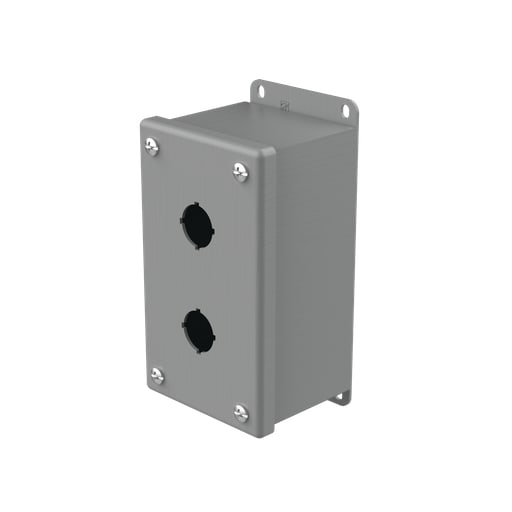

nVent Hoffman - Hoffman E2PBG Pushbutton Enclosures, Type 12, 2PB x 22.5mm, Gray, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510589905
Applications - Controls and Drives
Catalog Number - E2PBG
Color - Gray
Depths - 70 mm
Packaging
1 ea
EAN
00783510589905
Part #
135050
Catalog #
E2PBG
Commercial reference
E2PBG
12-Digit UPC:
783510589905
Applications:
Controls and Drives
Catalog Number:
E2PBG
Color:
Gray
Depths:
70 mm
ERP_productname:
HOFF E2PBG ENCL MFG ITEM 58990
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
146 mm
Length:
6-3/4 Inch
Material:
Steel
Number of Holes:
2 Hole
Size:
2PB x 22.5mm
Sub Brand:
Hoffman
Type:
2 Holes
Widths:
83 mm
SoneparProductId:
SKU_US_58153316
These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches. Features: Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Bonding provision on cover; Grounding stud on body; Oil-resistant gasket; Factory stamped 4-way pushbutton holes; Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring; External welded-on mounting brackets for easy installation; 30.5-mm or 22.5-mm size holes
