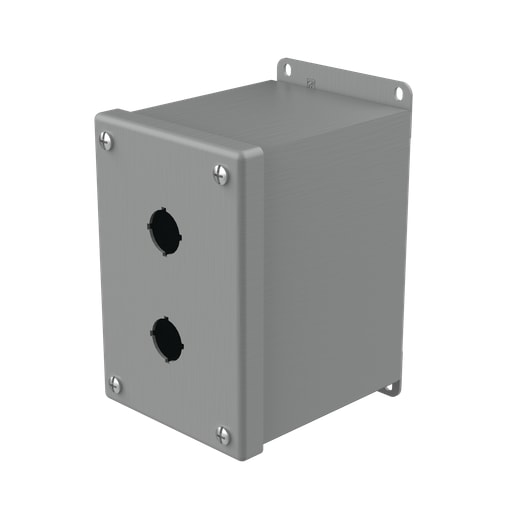

nVent Hoffman - Hoffman E2PBXM Extra-Deep Pushbutton Enclosures, Type 12, 2PB x 22.5mm, Gray, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510130367
Applications - For Push Buttons and Switches
Catalog Number - E2PBXM
Color - Gray
Depths - 121 mm
Packaging
1 ea
EAN
00783510130367
Part #
217553
Catalog #
E2PBXM
Commercial reference
E2PBXM
12-Digit UPC:
783510130367
Applications:
For Push Buttons and Switches
Catalog Number:
E2PBXM
Color:
Gray
Depths:
121 mm
ERP_productname:
HOFF E2PBXM PB ENCL X DEEP 22.5MM MFG ITEM 13036
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
152 mm
Length:
7 Inch
Material:
Steel
Number of Holes:
2 Hole
Size:
2PB x 22.5mm
Sub Brand:
Hoffman
Type:
2-Hole, Extra Deep
Widths:
102 mm
SoneparProductId:
SKU_US_58070682
Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks. Features: Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Bonding provision on cover; Grounding stud on body; Oil-resistant gasket; Factory stamped 4-way pushbutton holes; Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring; External welded-on mounting brackets for easy installation; 30.5-mm or 22.5-mm size holes
