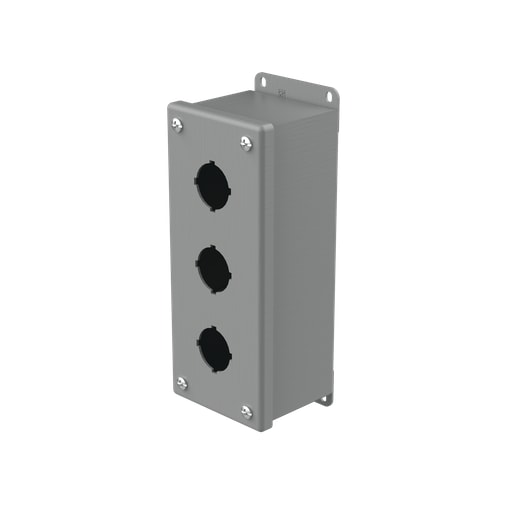

nVent Hoffman - Hoffman E3PB 8" x 3.25" x 2.75" 3-Hole 30.5mm Pushbutton Enclosure, Type 12, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510580308
Applications - Controls and Drives
Catalog Number - E3PB
Color - Gray
Depths - 70 mm
Packaging
1 ea
EAN
00783510580308
Part #
205569
Catalog #
E3PB
Commercial reference
E3PB
12-Digit UPC:
783510580308
Applications:
Controls and Drives
Catalog Number:
E3PB
Color:
Gray
Depths:
70 mm
ERP_productname:
HOFF E3PB 3H OT PB ENCL 30.5MM MFG ITEM 58030
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
203 mm
Length:
8.2 Inch
Material:
Steel
Number of Holes:
3 Hole
Size:
3PB x 30.5mm
Sub Brand:
Hoffman
Type:
3 Holes
Widths:
83 mm
SoneparProductId:
SKU_US_58069175
Pushbutton Enclosures, Type 12, 3PB x 30.5mm, Gray, Steel Features: Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Bonding provision on cover; Grounding stud on body; Oil-resistant gasket; Factory stamped 4-way pushbutton holes; Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring; External welded-on mounting brackets for easy installation; 30.5-mm or 22.5-mm size holes
