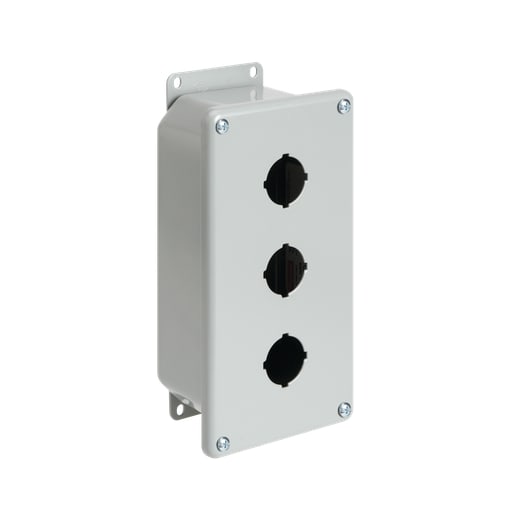

nVent Hoffman - Hoffman E3PBGXM Deep Pushbutton Enclosures, Type 12, 3PB x 22.5mm, Gray, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510135287
Applications - For Push Buttons and Switches
Catalog Number - E3PBGXM
Color - Gray
Depths - 89 mm
Packaging
1 ea
EAN
00783510135287
Part #
154869
Catalog #
E3PBGXM
Commercial reference
E3PBGXM
12-Digit UPC:
783510135287
Applications:
For Push Buttons and Switches
Catalog Number:
E3PBGXM
Color:
Gray
Depths:
89 mm
ERP_productname:
HOFF E3PBGXM PB ENCLOSURE EXTRA DEEP MFG ITEM 13528
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
184 mm
Length:
7-1/2 Inch
Material:
Steel
Number of Holes:
3 Hole
Size:
3PB x 22.5mm
Sub Brand:
Hoffman
Type:
3-Hole, Extra Deep
Widths:
70 mm
SoneparProductId:
SKU_US_58201649
Deep pushbutton enclosure made of 14 ga steel. Seams continuously welded and ground smooth. Captivated cover screws thread into sealed wells. Grounding nut in body of enclosure. Bonding provision on cover. Oil-resistant gasket. Enclosures with more than one column of pushbutton holes have internal detachable hinge. External wall-mounting brackets. Factory stamped 4-way pushbutton holes. Features: Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Bonding provision on cover; Grounding nut in body of enclosure; Oil-resistant gasket; Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during installation; External welded-on mounting brackets for easy installation; Factory stamped 4-way pushbutton holes; 22.5-mm size holes
