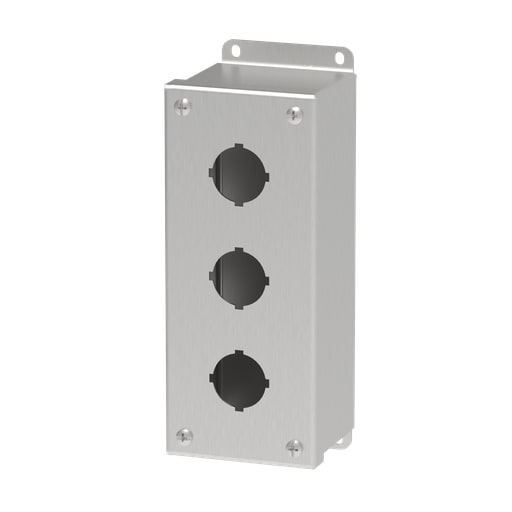

nVent Hoffman - Hoffman E3PBSS 8" x 3.25" x 2.75" 3-Hole 30.5mm Pushbutton Enclosure, Type 4X, Stainless Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510596309
Applications - Provide Protection Against Dirt, Dust, Oil and Water
Catalog Number - E3PBSS
Color - Stainless Steel
Depths - 70 mm
Packaging
1 ea
EAN
00783510596309
Part #
161671
Catalog #
E3PBSS
Commercial reference
E3PBSS
12-Digit UPC:
783510596309
Applications:
Provide Protection Against Dirt, Dust, Oil and Water
Catalog Number:
E3PBSS
Color:
Stainless Steel
Depths:
70 mm
ERP_productname:
HOFF E3PBSS 3 PB ENCLOSURE 8.00X3.25X2.75 MFG ITEM 59630
Family Brand Name:
nVent Hoffman
Finish:
Brushed
Heights:
203 mm
Length:
8.3 Inch
Material:
Stainless Steel
Number of Holes:
3 Hole
Size:
3PB x 30.5mm
Sub Brand:
Hoffman
Type:
3 Holes
Widths:
83 mm
SoneparProductId:
SKU_US_58966474
Pushbutton enclosure, Type 4X, 14 gauge type 304 stainless steel, Seams continuously welded and ground smooth, Captivated cover screws thread into sealed wells, Grounding nut in body of enclosure, Bonding provision on cover, Oil-resistant gasket, Enclosures provide protection against dirt, dust, oil and water. Features: Prepunched 30.5mm or 22.5mm holes; Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Bonding provision on door; grounding nut on body; 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights; Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal; Oil-resistant gasket
